autoamtic juice carton partition assembler machine - Welldoing trading limited

Short Description:

Application:Chemical, Machinery & Hardware, Medical, Textiles
Packaging Type:Cartons, Film
Packaging Material:Paper, Wood
Automatic Grade:Automatic
Driven Type:Electric, Electric
Voltage:220V/380V


Product Detail

Product Tags

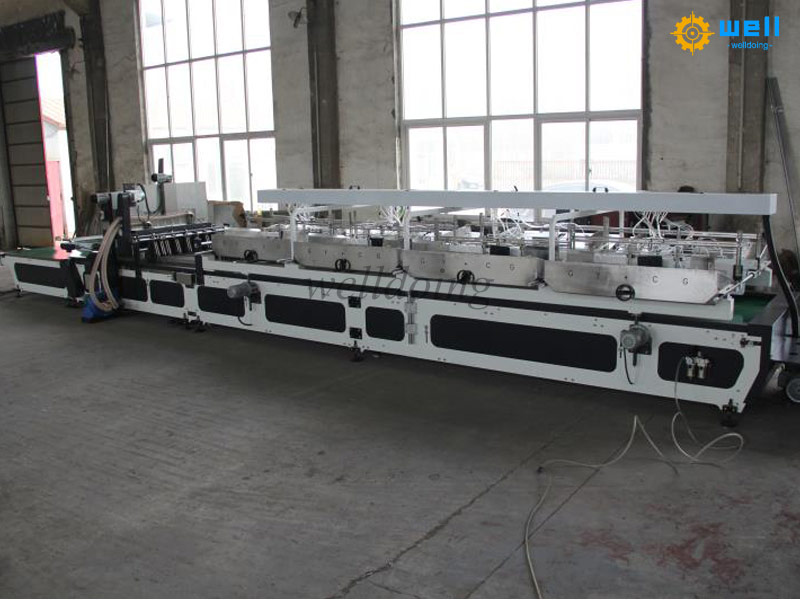

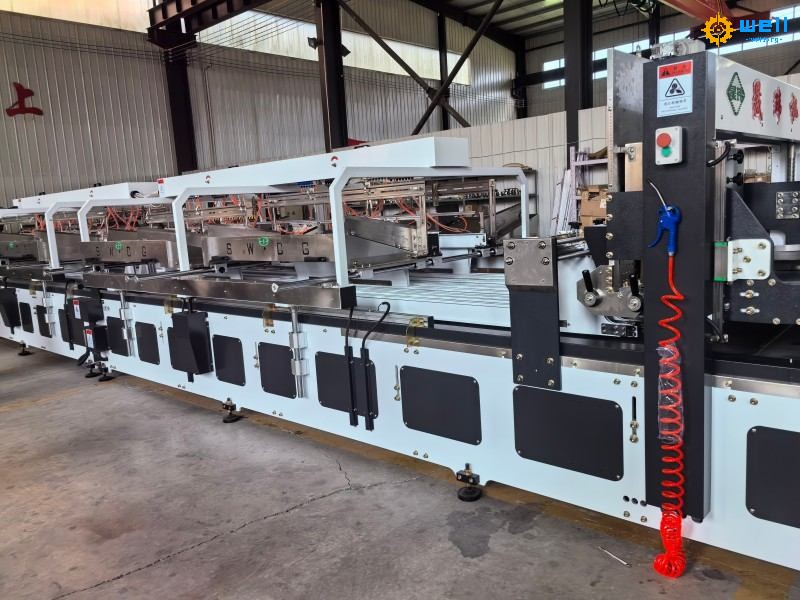

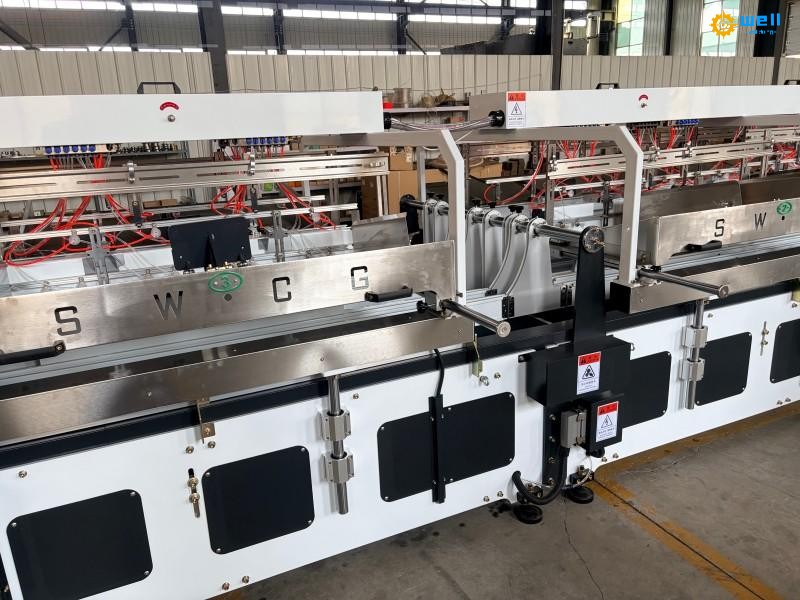

automatic juice carton partition assembler machine

Partition-Assembler-Machine-3

Partition-Assembler-Machine-2





Partition-Assembler-Machine-1   product presentation:

1. partition assembling corrugated box inserting equipment suitable for the auto insertion of all kinds of carton clapboard.

2. vertical direct using vacuum adsorption feeding, landscape orientation using servo feeding, quick and accurate.

3. longitudinal and transverse to cross the two pieces of paper at the same time.
4. longitudinal feeding shaft adopts electric lifting
5. landscape orientation feeding worktable lifting adopts electric adjustment.

6. electric adjust the clapboard height in landscape orientation.
7. output in double work positions, high efficiency and energy saving.
8. partition assembler is touch screen control, electric adjust the clapboard parameters.

9. comprehensive using of pneumatic and electric control, to ensure the advancement of machine control.
10. The automatic carton partition assembling machine using compressed air strorage tanks for gas centralized supply, gas supply pressure stability, enough gas source. the gas device get the gas from the primary tracheal, independent control, no influence between each other.
11. the partition assembler equipped with fault detection device, auto stop the machine when paper blocking.

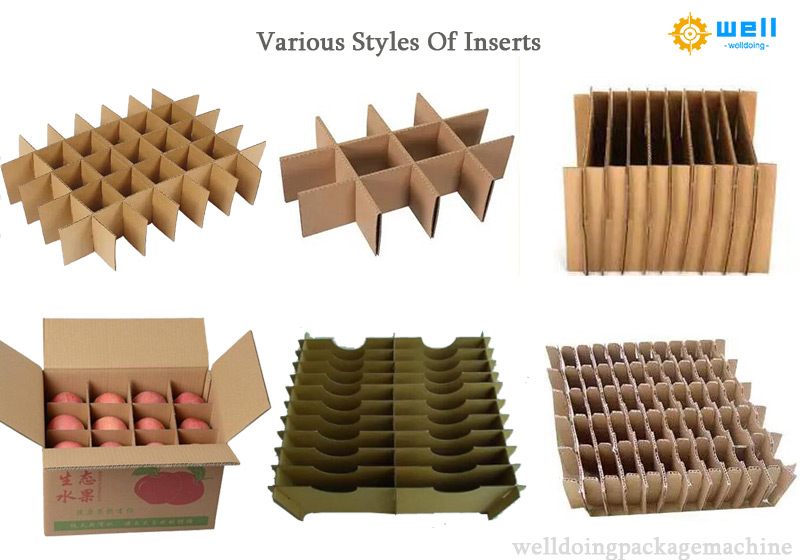

Finished picture :
www.wd-cartonmachine.com
product-5

technical parameter:

                    Name    Unit Date
Horizontal inserting width: A          mm           120~900
Lengthways sheets length: B          mm          mm210~450
Clapboard Height: H          mm          80~300
Lengthways  clapboard distance: D          mm          20~400
Horizontal  clapboard distance: C          mm          45-850
Lengthways sheets No.          unit           1-6
Horizontal  clapboard No.          unit           1-21
Carton inserting mouth width:F         mm        >board thickness
Carton thickness:K         mm         1.5~8mm

certifications3

www.wd-cartonmachine.com



packing-shipping

Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
