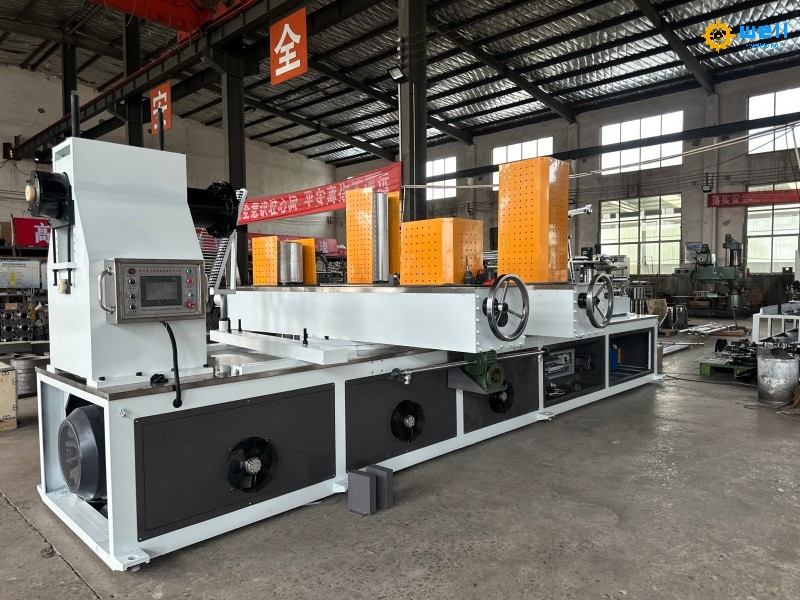

automatic 4 heads spiral paper core making machine
| certification | iso9001 | place of origin | china |
|---|---|---|---|
| Payment Terms | T/T | Supply Ability | 5setpermonth |
| Delivery Time | 45days | Packaging Details | Stretch film |
| Product type | Paper Core Machine,Core Tube Making Machine | Processing type | Paper tube making machine |
| Power(w) | 15kw | Warranty | 1 Year |
| Name | paper tube making machine,Paper Pipe Tube Cutting Machine | Type | paper tube making machine |
| diameter | 30-200（mm） | Thickness | 2-15（mm） |

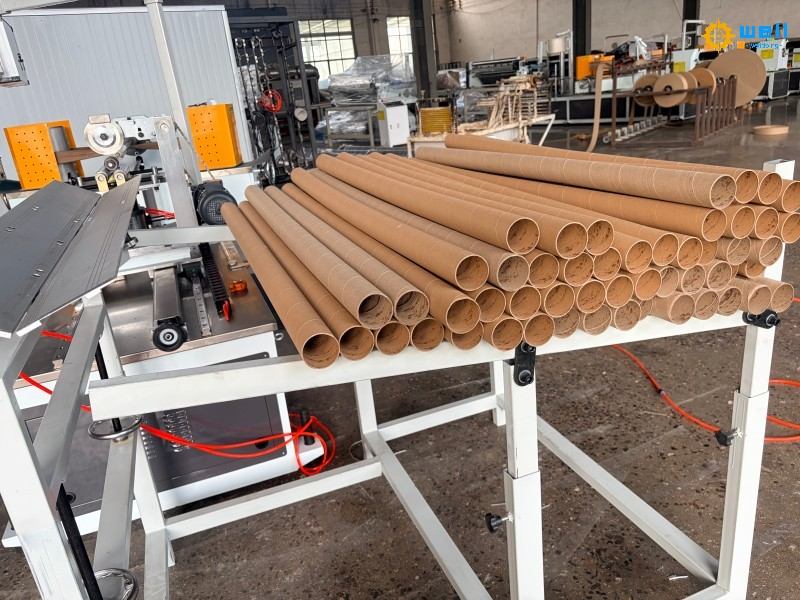

automatic paper tube equipment
| 纸管机型号 Model |
200型四机头数控纸管机Model 200 Four-head CNC Pipe Machine | ||
| 技术参数 Technical parameter |
控制系统 Control system |
||
| 卷管纸张层数 paper layer |
3-25layer | PLC控制器 PLC controller | 专业产品 Professional products |
| 纸管内径 Inner diameter of tube |
30-200(mm) | 人机界面 Interface | 专业产品 Professional products |
| 纸管厚度 Thickness of tube |
2-15(mm) | 程序版本 Program version | CX-P 9.04 |
| 卷管速度 Speed |
0-27(m/min) | 变频器 Frequency converter | 安瑞吉产品 ENERGY |
| 定长模式 Fixed length mode |
数控(光控) CNC (Optical Control) |
中间继电器/接触器Intermediate relay/contactor | 正泰 chint |
| 卷绕机头 Winding head |
无阻力四机头 No resistance four nose | 信号元件(光电开关等)Signal element (photoelectric switch, etc.) | 倍福宁品牌/沪工pefun/hugong |
| 切割方式 Cutting type |
数控自动跟踪切割 CNC Automatic Tracking for Cutting |
按钮 Button | 西门子 Siemens |
| 卷芯模具固定方式Fixing Method of Core Rolling Die | 法兰加顶紧 Flange tightening |
急停 Emergency stop | 西门子 Siemens |
| 上胶方式 Gluing way |
双面上胶 Double sides glue |
旋钮 knob | 西门子 Siemens |
| 控制方式 control mode |
变频调速 Frequency control |
气动元件 Pneumatic components |
索派天奥/成迪品牌suopai/tianao/chengdi |
| 输入电压 Input voltage |
380V/220V | 同步控制 Synchronous control |
X轴伺服滚珠丝杠X-axis servo ball screw |
| 操作人数 Number of operators |
1-3people | 同步跟踪切管系统Synchronized tracking tube cutting system | 欧瑞伺服电机 EURA Servo Motor |
| 尺寸(毫米) Dimensions (mm) | 切刀升降 Cutter lift | 索派天奥品牌 suopai/tianao | |
| 主机尺寸:长*宽*高 Main machine:L*W*H |
5200mm*1900mm*2100mm | 按钮急停 Button stop | 江阴长江品牌 Jiangyin Changjiang Brand |
| 占地面积:长*宽 Coverage: L*W |
20000mm*9000mm | 气缸 Cylinder | 亚德克 Al DEK |
| 轮毂直径 Hub diameter |
294mm | 电磁阀 Solenoid valve | 亚德克 Al DEK |
| 轮毂高度 Hub height |
360mm∕430mm | ||
| 皮带辊距离 Distance of belt rollers |
590-1190mm | 配置装置 Configuration device | |
| 主机重量 Host weight | 3450kg | 纸架类型 Paper holder type | 直角固定式吊装上纸架 Right angle fixed hoisting paper holder |
| 总重量 Total weight | 4460kg | 供胶水 Glue supply | 自动循环上胶,可加热胶槽 Automatic cycle gluing, heated glue tank |
| 传动系统 drive system | 纸带供滑润油 Paper tape for lubricating oil | 自动润滑不锈钢盆 Automatic lubrication stainless steel basin | |
| 主机功率 Main power | 上海强速衡水永顺 15kw shanghai qiangsu,hengshui yongshun | 底纸断纸 Bottom paper breaking | 自动报警 automatic alarm |
| 主机转速 Main engine speed |
1400r∕min | 张力调节 Tension adjust | 机械调节 Mechanical adjustment |
| 轮毂最高转速 Max. speed of hub |
62r∕min | 底,面纸装置 Bottom and Top Paper Device | 不锈钢底纸架,面纸盆Stainless steel bottom paper holder, face paper basin |
| 轮毂输出扭矩 Hub Output Torque |
8500NM | 导纸轮 Guide wheel | 不锈钢管 Stainless steel pipe |
| 减速机型号 Reducer Model |
杭州萧山/杭州一鼎WPO155 hangzhou xiaoshan /yiding | 主机台面 Host Mesa | 不锈钢板 Stainless steel plate |
| 直线导轨 Linear guide rail | 方形 Square |
主机角度 Host angle | 电动调节 Electric adjustment |
| 传动链型号 Drive Chain Type | 12A×2 | 卷管芯棒 Coil mandrel | 1 |
| 轮毂驱动 Hub drive | 四轮驱动 Four wheel drive | 卷管皮带 Coil belt | 2 |
| 切刀电机 Cutter motor | 0.4kwGear motor Shanghai Ott齿轮电机 上海欧特 | 下料架 Blanking rack | 不锈钢自动下料 Stainless steel automatic blanking |
| 传动方式 Transmission mode | 齿轮传动 gear drive | 应用工具 Application tools | 内六方1套 Neihexagonal 1 set |
| 轴承 Bearing | 万向轴承 WANXIANG | ||
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
