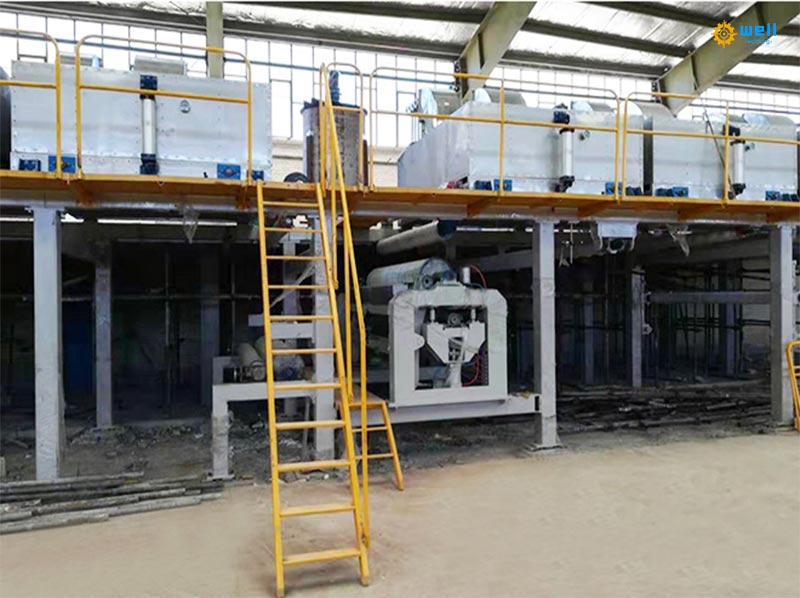

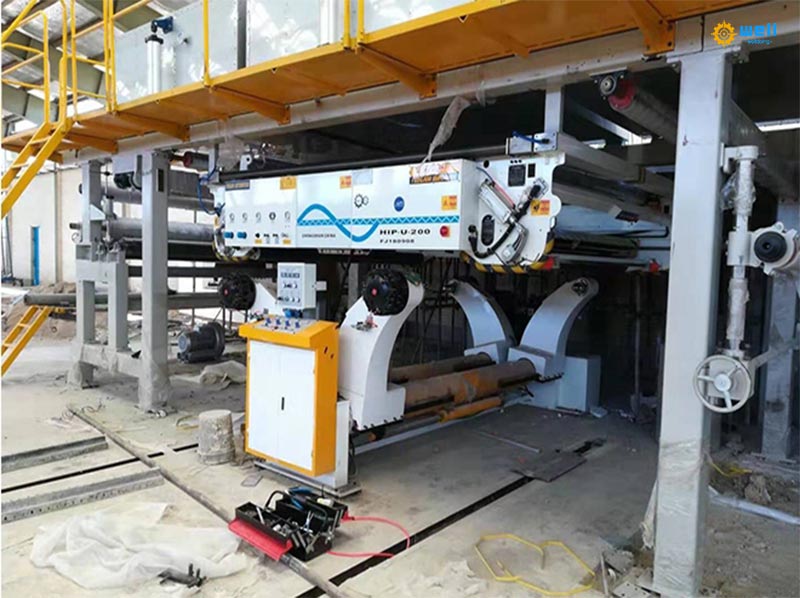

Paper coating machine is suitable for gray board,yellow straw board,kraft paper, it is a one-side coated,the base paper weight is 90~500g/m2.
 Single-story workshop,the machine will be installed on the ground. It can divided into right hand machine and left hand machine on the basis of transmission place.

Paper coating machine technical parameters:
1.Product variety:Grey board paper, case board paper, kraft paper.
2.GSM of base paper:   80-500 g/m2
3.GSM of finished paper: 130-550 g/m2
4.Base paper width:  1450mm
5.Net paper width:   1400mm
6.Design speed:   120m/min
7.Working speed:   50-100m/min
8.Nominal output:   20-40 t/d
9.Theoretical output:   36t/d(according to200g/m2 *22h/d *100m/min36tons)
10.Coating type: (Front side)Once air knife,twice scraper knife,(back side)Once scraper knife coating
11.Coating quantity:  (max)one time10–30g/m²(4 times)
12.Coating solid content:(max) 38- 62%
13.Steam heating:   0.7Mpa
14.Working temperature of drying oven:140ºC
15.Threading mode:Manually.
