automatic angle corner edge protectors making machine

automatic angle corner edge protectors making machine - Welldoing trading limited

Short Description:

Delivery Time	45	Packaging Details	Stretch film
Product type	paper edge protector machine	Wide	20-100mm
Thick	2-8mm	Control mode	Frequency control
Coverage:L*W	22m*3m	Total weight	4590kg

Send email to us Download as PDF

Product Detail

Product Tags

automatic angle corner edge protectors making machine description

1) Paper Angle Board Machine is a kind of machine that specializes in the production of paper corner. It is generally composed of paper guide, gluing, forming, cutting, automatic stacking and other devices and some accessories, which can complete all the processes of paper corner manufacturing.

2) It is applicable to the processing and manufacturing of angle protection (width 20-100mm; thickness 2-8mm; length 50-9000mm).

3) The cutting and punching angle is servo motor (4.3kw * 2). The servo motor has good stability and large torque, as well as its unique extreme speed start and stop function, which is undoubtedly the best product for cutting and punching angle.

4) Cutting and punching angle of the paper angle board machine are applied to a main machine at the same time, which greatly improves the production efficiency, saves labor, reduces the error of cutting and punching, and improves the yield.

5) The frequency converter is an anruiji product, which is a well-known brand in China, with high practical value, low failure rate and small repair rate. The motor can be controlled by frequency conversion so as to adjust the speed of the machine.

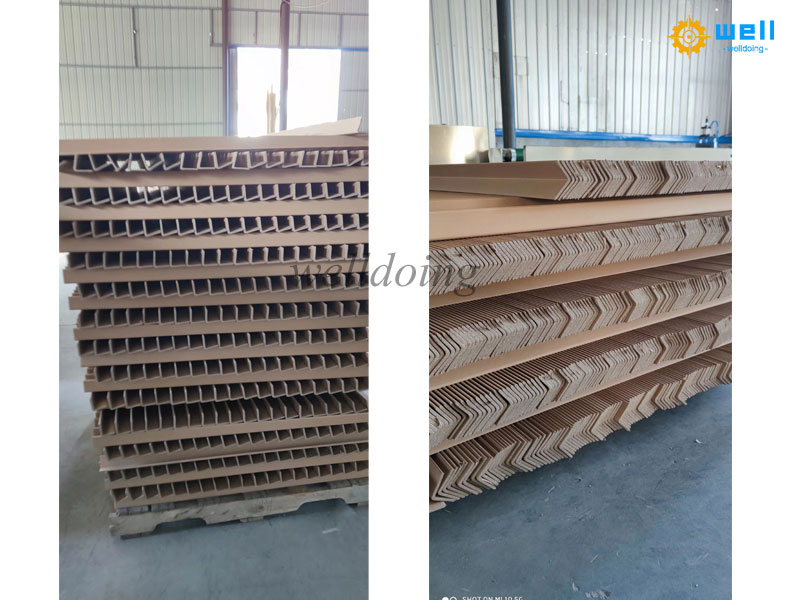

Finshed Product:

Our service:

Equipment warranty for one year (cylinder parts warranty for three months,the belt,mold,the blade is not not warranty)

1. equipment installation and commissioning after free repair period is one year.

2.free of charge to the customer technical guidance and training of equipment operation and maintenance of the knowledge.

3.from the use of nealect,vandalism,natural disasters damaged and in need of replacement parts of artificial,material fee will be charged.

4.in the warranty period is over, bassed on the parties intend to continue the development of cooperation,we provide lifetime repair service,only charge for the spare parts,material cost.
