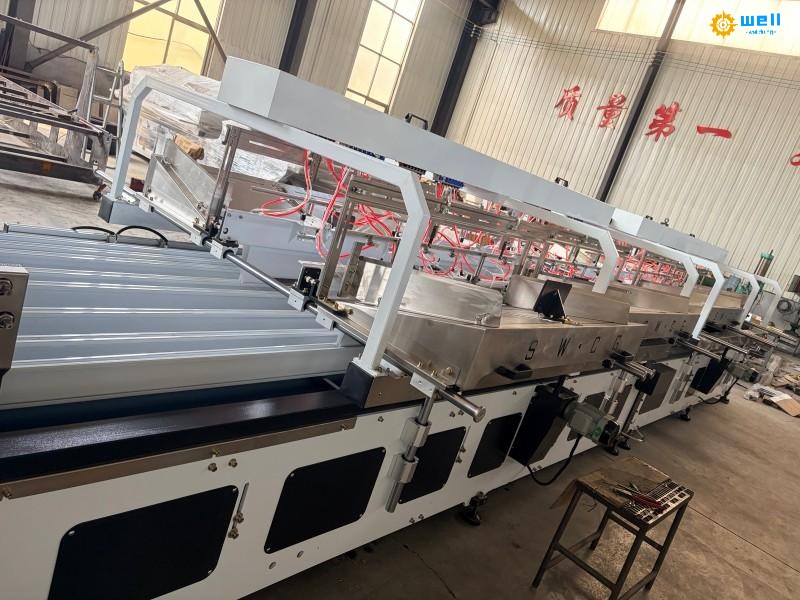

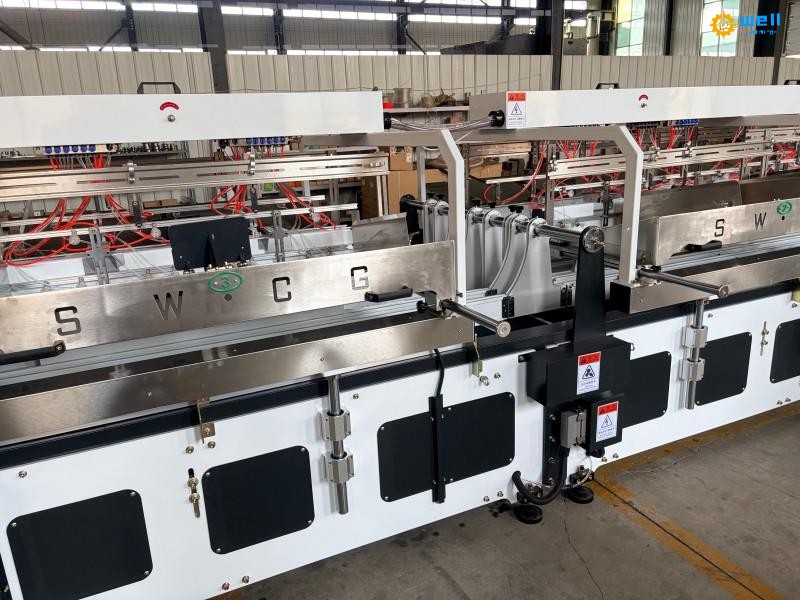

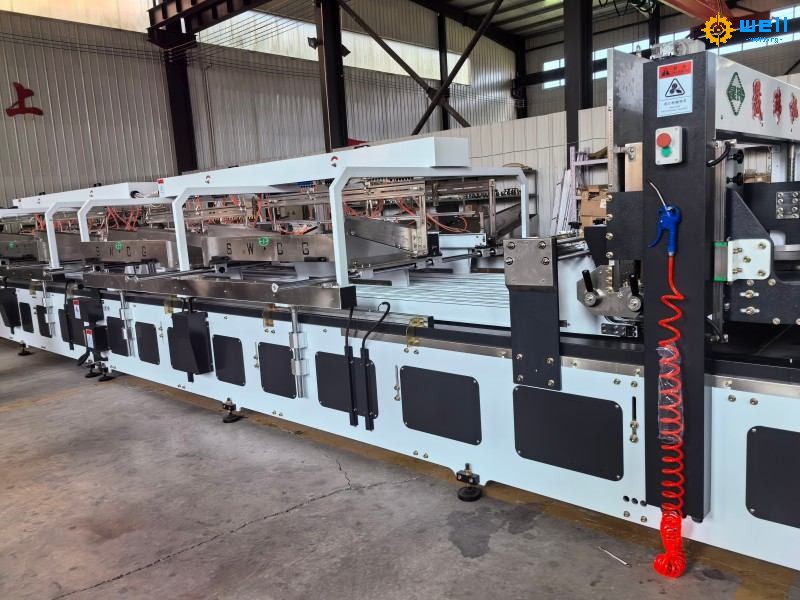

Automatic corrugated box partition assembly insert machine

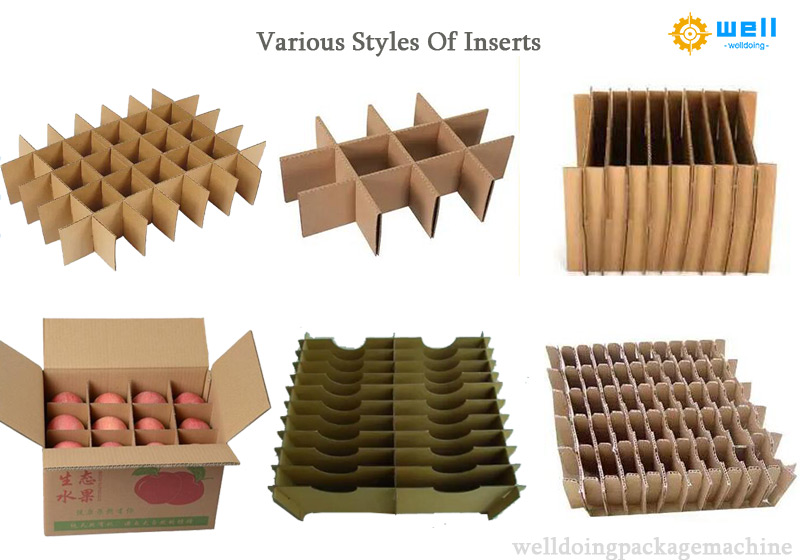

1. automatic corrugated box partition assembly insert machine suitable for the auto insertion of all kinds of carton clapboard.
2. vertical direct using vacuum adsorption feeding, landscape orientation using servo feeding, quick and accurate.
3. longitudinal and transverse to cross the two pieces of paper at the same time.
4. longitudinal feeding shaft adopts electric lifting
5. landscape orientation feeding worktable lifting adopts electric adjustment.
6. electric adjust the clapboard height in landscape orientation.
7. output in double work positions, high efficiency and energy saving.
8. partition assembler is touch screen control, electric adjust the clapboard parameters.
11. the partition assembler equipped with fault detection device, auto stop the machine when paper blocking.
technical parameter:| Name | Unit | Date |
| Horizontal inserting width: A | mm | 120~900 |
| Lengthways sheets length: B | mm | mm210~450 |
| Clapboard Height: H | mm | 80~300 |
| Lengthways clapboard distance: D | mm | 20~400 |
| Horizontal clapboard distance: C | mm | 45-850 |
| Lengthways sheets No. | unit | 1-6 |
| Horizontal clapboard No. | unit | 1-21 |
| Carton inserting mouth width：F | mm | ＞board thickness |
| Carton thickness:K | mm | 1.5~8mm |
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
