Automatic Fireworks Paper Tube Making Machine - Welldoing trading limited

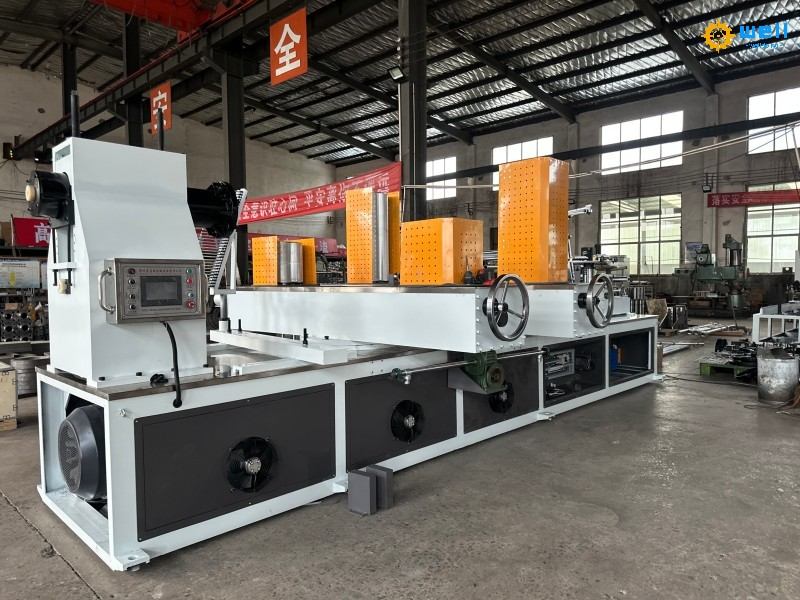

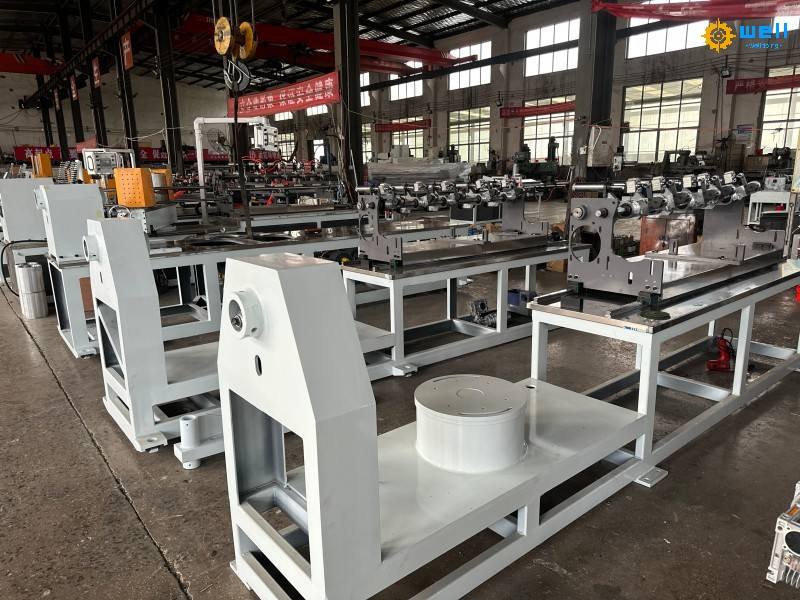

automatic fireworks paper tube making machine
| Model | Model 200 Four-Head Tube Machine | ||
| Technical parameter | Control system | ||
| paper layer | 3-25layers | Frequency converter | ENERGY |
| Inner diameter of tube | 30-200(mm) | Major Executing Devices (Contactors, etc.) | CHINT |
| Thickness of tube | 2-15(mm) | Button | Siemens |
| Speed | 0-20(m/min) | Emergency stop | Siemens |
| Fixed length mode | Light Control (Infrared) | knob | Siemens |
| Winding head | Four nose | Signal element (photoelectric switch, etc.) | hugong |
| Cutting type | Single knife cutting | Pneumatic components | SOUPAI/TIANAO |
| Fixing Method of Core Rolling Die | Flange tightening | Synchronous control | Pneumatic |
| Gluing way | Double sided glue | Fixed length mode | Proximity switch |
| control mode | Frequency control | PLC controller | WEIKONG |
| Input voltage | 380V/220V | Interface | KUNLUN |
| Number of operators | 1-3people | Button stop | Jiangyin Changjiang Brand |
| Dimensions (mm) | Cylinder | Al DEK | |
| Main machine:L*W*H | 5200mm*1900mm*2100mm | Solenoid valve | Al DEK |
| Coverage: L*W | 20000mm*9000mm | Configuration device | |
| Hub diameter | 294mm | Paper holder type | Fixed hoisting paper holder |
| Hub height | 360mm/430mm | Glue supply | Automatic cycle gluing, heated glue tank |
| Host weight | 3050kg | Paper tape for lubricating oil | Automatic lubrication stainless steel basin |
| Total weight | 4060kg | Tension adjust | Mechanical adjustment |
| Drive system | Bottom and Top Paper Device | Stainless steel bottom paper holder, face paper basin | |
| Main power | 15kw shanghaiqiangsu/hengshui yongshun | Guide wheel | Stainless steel pipe |
| Main engine speed | 1400r/min | Host Mesa | Stainless steel plate |
| Max. speed of hub | 47r/min | Coil mandrel | 1 |
| Hub Output Torque | 8500N.m | Coil belt | 2 |
| Reducer Model | WPO155 hangzhou xiaoshan/yiding | Blanking rack | Stainless steel automatic blanking |
| Drive Chain Type | 12A*2 | Application tools | Neihexagonal 1 set |
| Hub drive | Four wheel drive | ||
| Cutter motor | 0.4kw OTG from shanghai | ||
| Transmission mode | chain | ||
| Bearing | wanxiang | ||

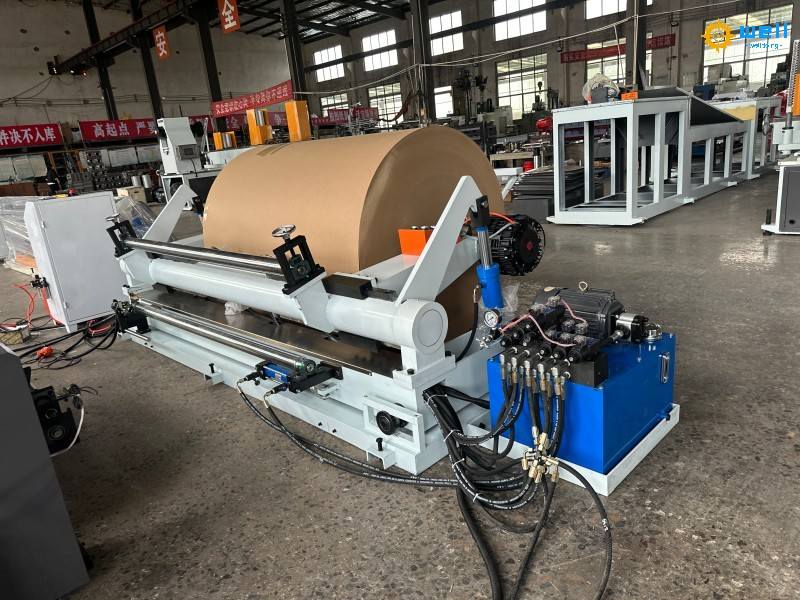

automatic kraft paper tube machine
Features
1. Roll photoelectric correction, high precision; divided into two gears: manual and automatic gear;
2, can have two ways: surface roll and central roll;
3, use automatic tension;
4, round knife split, reliable quality, convenient adjustment;
5. use surface center roll, uniform and stable quality;
6, fixed length automatic shutdown, automatic meter;
7, with edge cutting device, edge material discharged by the fan;
8, especially suitable for narrow belt (insulating material, mica belt, film, etc.)
