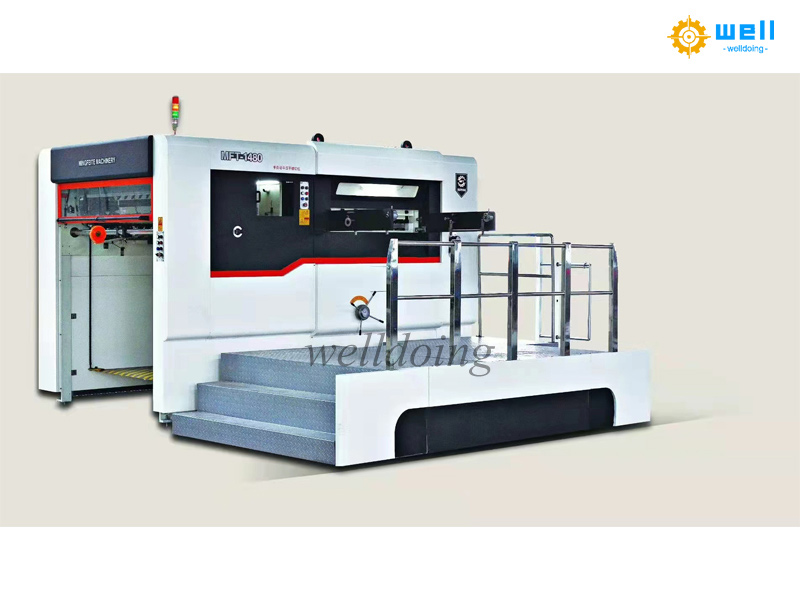

automatic leading edge paper feed die cutting machine - Welldoing trading limited

Short Description:

1. adopting the central positioning system

2. The high-speed precision leading edge paper feeding device

3. Variable frequency control and air volume regulation

4. The patented servo motor control

5. PLC control, safer and more reliable.


Product Detail

Product Tags

Leading edge paper feed (semi clean waste) automatic die cutting machine (leading edge paper feed die cutting machine)is easy to operate for many people. And it is widely used in industry.

Stripping Section:

The waste removal form-work adopts the central positioning system, which is automatically clamped, which is fast and convenient for plate alignment.

Front Feed Section:

The high-speed precision leading edge paper feeding device adopts the structure of the combination of the air suction box, the paperboard, the supporting bar and the air discharge cylinder to effectively prevent the printing surface from being scratched and scratched.

Variable frequency control and air volume regulation can meet the paper feeding requirements of various corrugated products with a thickness of 1-9mm.

machine-1

Side Position Part Of Paper Feeding Table:

The patented servo motor control ensures the accurate positioning of the mentally retarded and the flat front edge. A set of side positioning push gauges on the left and right to ensure accurate positioning of the paperboard.

Electrical Section:

PLC control, safer and more reliable. The electric control system is controlled by PLC and equipped with various safety protection devices. In case of failure, it will give an audible and visual alarm and stop automatically to truly ensure the safety of man-machine.

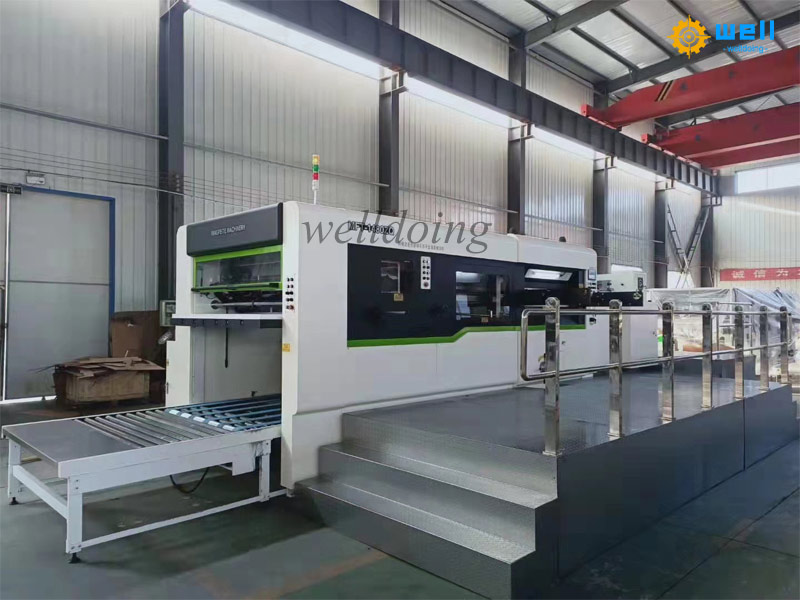

fully automatic die cutting machine specifications

Type 1300X 1480X 1650X 1880X
Max. Paper size 1330×980(mm) 1480×1080(mm) 1650×1210(mm) 1880×1420(mm)
Min. Paper size 550×480(mm) 550×480(mm) 650×550(mm) 650×550(mm)
Max. Cutting size 1300×960(mm) 1450×1050(mm) 1620×1190(mm) 1850×1400(mm)
Max. Cutting pressure 250×104N 300×104N 300×104N 300×104N
Stock range Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g
Cutting precision ±0.5(mm) ±0.5(mm) ±0.5(mm) ±0.5(mm)
Max. Mechanical speed 4200s/h 4200s/h 3600s/h 3000s/h
Pressure adjusting range ±1(mm) ±1(mm) ±1(mm) ±1(mm)
Min. Gripper Margin Gripper ≥8(mm) Gripper ≥8(mm) Gripper ≥8(mm) Gripper ≥8(mm)
Total Power 30.03kw 34.03kw 34.03kw 38.5kw
Machine dimension(include the work platform) 6870×4510×2292(mm) 6950×4650×2292(mm) 7333×4820×2330(mm) 8235×5637×2600(mm)
Machine dimension(exclude the work platform) 6392×2450×2292(mm) 6587×2596×2292(mm) 6926×2802×2330(mm) 7993×3035×2600(mm)
Gripper/needle numbers/each 10 11 12 14
Total Weight  ̄18.5t  ̄22t  ̄23t  ̄29t



Type 1300QX 1480QX 1650QX 1880QX
Max. Paper size 1330×980(mm) 1480×1080(mm) 1650×1210(mm) 1880×1420(mm)
Min. Paper size 550×480(mm) 550×480(mm) 650×550(mm) 650×550(mm)
Max. Cutting size 1300×960(mm) 1450×1050(mm) 1620×1190(mm) 1850×1400(mm)
Max. Cutting pressure 250×104N 300×104N 300×104N 300×104N
Stock range Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g
Cutting precision ±0.5(mm) ±0.5(mm) ±0.5(mm) ±0.5(mm)
Max. Mechanical speed 4200s/h 4200s/h 3600s/h 3000s/h
Pressure adjusting range ±1(mm) ±1(mm) ±1(mm) ±1(mm)
Min. Gripper Margin Gripper ≥8(mm) Gripper ≥8(mm) Gripper ≥8(mm) Gripper ≥8(mm)
Total Power 31.03kw 35.29kw 35.5kw 41.5kw
Machine dimension(include the work platform) 8330×4510×2292(mm) 8594×4650×2292(mm) 8855×4820×2330(mm) 10067×5637×2600(mm)
Machine dimension(exclude the work platform) 7713×2450×2292(mm) 8009×2596×2292(mm) 8449×2802×2330(mm) 9820×3035×2600(mm)
Gripper/needle numbers/each 10 11 12 14
Total Weight  ̄20.5t  ̄24t  ̄27t  ̄31.5t

Products Advantages:

1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory

WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine, automatic flexo printer slotter die cutter stacker machine, high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler machine , paper tube making machineflexo ink printing wastewater treatment machine and so on.

Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.
