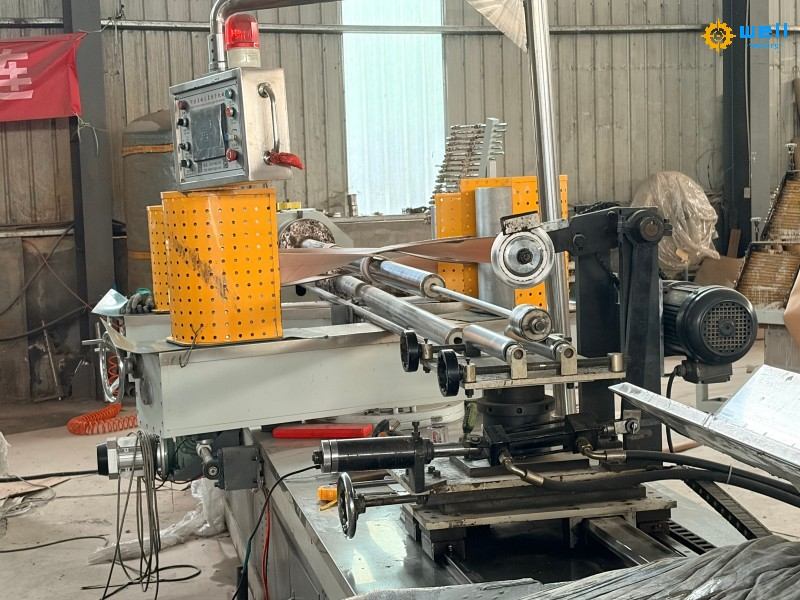

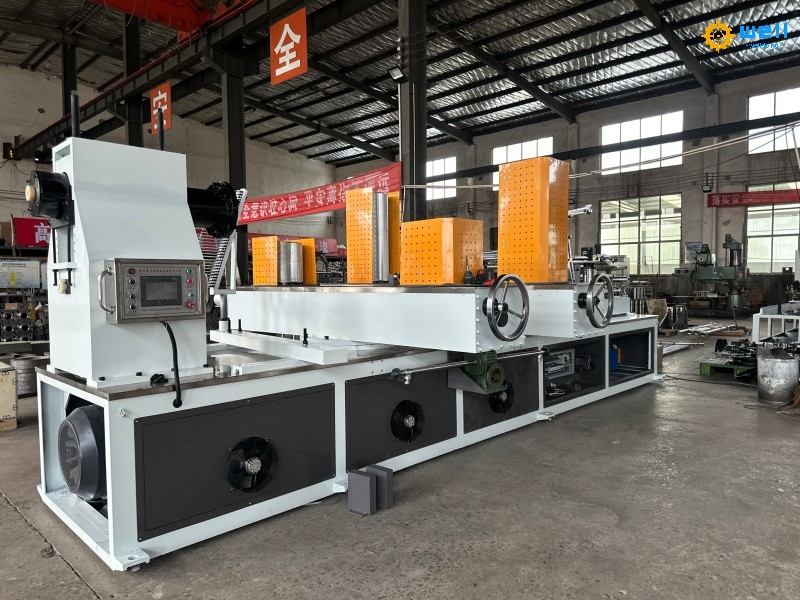

automatic spiral kraft paper core making machine - Welldoing trading limited
automatic paper core making equipment
We are a foreign trade sales manufacturer integrated company, we have specialized in doing paper tube making machine for many years, for example :tissue paper tube making machine, kraft paper tube making machine ,fireworks paper tube making machine, big diameter kraft paper tube machine, toilet paper core making machine and related products of paper tube cutting machine, paper slitter rewinder machine,paper angle board machine, we have a professional technical team, products exported to Southeast Asia and Europe and other countries

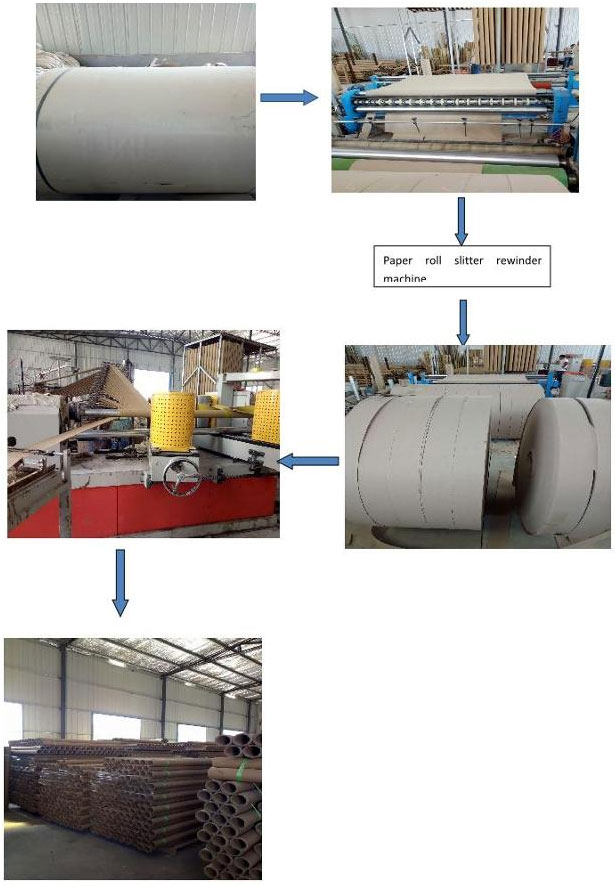

Making paper tube process:
automatic spiral kraft paper core making machine technical parameters:
| Model | Model 200 Four-Head Tube Machine | ||
| Technical parameter | Control system | ||
| paper layer | 3-25layers | Frequency converter | ENERGY |
| Inner diameter of tube | 30-200(mm) | Major Executing Devices (Contactors, etc.) | CHINT |
| Thickness of tube | 2-15(mm) | Button | Siemens |
| Speed | 0-20(m/min) | Emergency stop | Siemens |
| Fixed length mode | Light Control (Infrared) | knob | Siemens |
| Winding head | Four nose | Signal element (photoelectric switch, etc.) | hugong |
| Cutting type | Single knife cutting | Pneumatic components | SOUPAI/TIANAO |
| Fixing Method of Core Rolling Die | Flange tightening | Synchronous control | Pneumatic |
| Gluing way | Double sided glue | Fixed length mode | Proximity switch |
| control mode | Frequency control | PLC controller | WEIKONG |
| Input voltage | 380V/220V | Interface | KUNLUN |
| Number of operators | 1-3people | Button stop | Jiangyin Changjiang Brand |
| Dimensions (mm) | Cylinder | Al DEK | |
| Main machine:L*W*H | 5200mm*1900mm*2100mm | Solenoid valve | Al DEK |
| Coverage: L*W | 20000mm*9000mm | Configuration device | |
| Hub diameter | 294mm | Paper holder type | Fixed hoisting paper holder |
| Hub height | 360mm/430mm | Glue supply | Automatic cycle gluing, heated glue tank |
| Host weight | 3050kg | Paper tape for lubricating oil | Automatic lubrication stainless steel basin |
| Total weight | 4060kg | Tension adjust | Mechanical adjustment |
| Drive system | Bottom and Top Paper Device | Stainless steel bottom paper holder, face paper basin | |
| Main power | 15kw shanghaiqiangsu/hengshui yongshun | Guide wheel | Stainless steel pipe |
| Main engine speed | 1400r/min | Host Mesa | Stainless steel plate |
| Max. speed of hub | 47r/min | Coil mandrel | 1 |
| Hub Output Torque | 8500N.m | Coil belt | 2 |
| Reducer Model | WPO155 hangzhou xiaoshan/yiding | Blanking rack | Stainless steel automatic blanking |
| Drive Chain Type | 12A*2 | Application tools | Neihexagonal 1 set |
| Hub drive | Four wheel drive | ||
| Cutter motor | 0.4kw OTG from shanghai | ||
| Transmission mode | chain | ||
| Bearing | wanxiang | ||

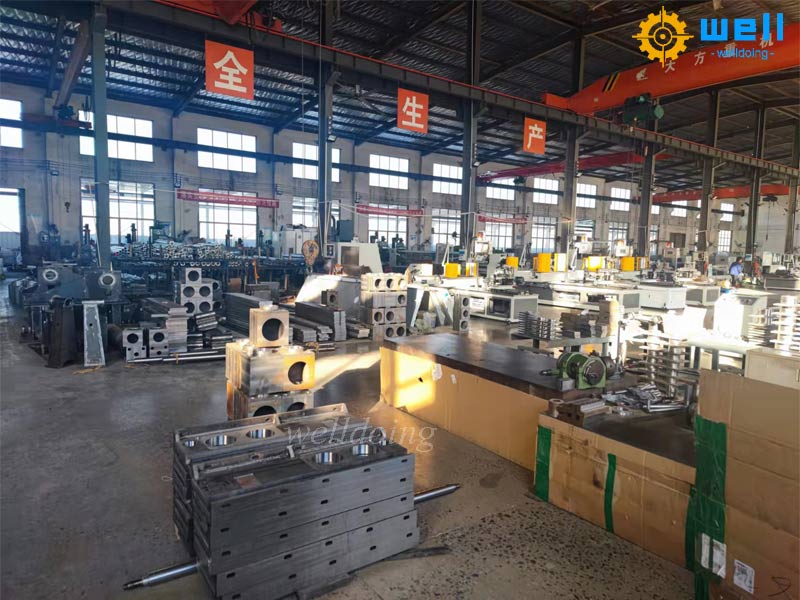

Our company:
