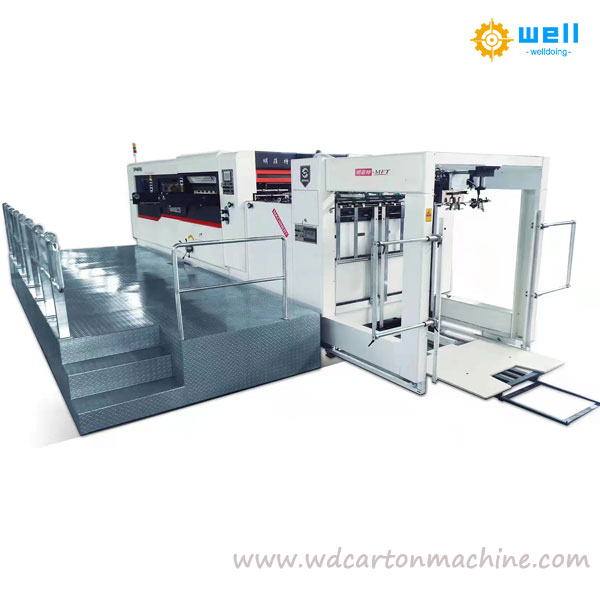

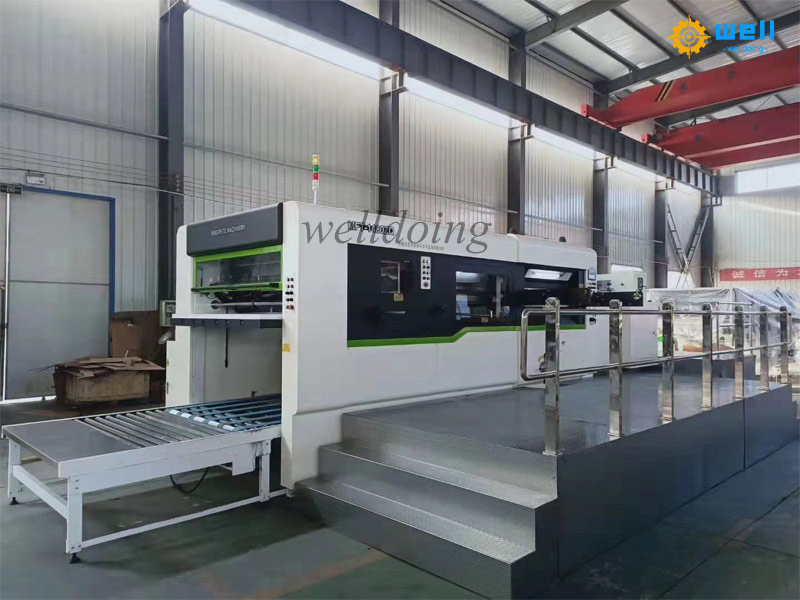

Full automatic paper feeding die cutting machine - Welldoing trading limited
full automatic paper feeding die cutting machine is a new kind of die cutting machine . It is widely used in many fields.
Specification Summary:
The machine adopts an independent motion control unit. The power is transmitted by the servo motor and controlled by the control system. It can realize the precise cooperation between the paper feeder and the host, and realize independent movement. The machine has automatic movement state, gives full play to the speed advantage of the machine, and is suitable for workers to operate.
Feeding Section:
Be suitable for many different types of paper. The operation space is fully released.
Worm Gear Drive:
Worm gear and worm drive ensures high-speed and stable operation of the machine
Worm gear drive has a good lubrication system
Wall Panel Material: nodular cast iron
Upper and lower platform: nodular cast iron
Five castings: integrated casting
automatic die cutting and stripping machine specifications
| Type | 1300S | 1480S | 1650S |
| Max. Paper size | 1330×980(mm) | 1480×1080(mm) | 1650×1420(mm) |
| Min. Paper size | 550×480(mm) | 550×480(mm) | 650×550(mm) |
| Max. Cutting size | 1300×960(mm) | 1450×1050(mm) | 1620×1190(mm) |
| Max. Cutting pressure | 250×104N | 300×104N | 300×104N |
| Stock range | Corrugated≤7mmCardboard≥250g | Corrugated≤9mmCardboard≥250g | Corrugated≤9mmCardboard≥250g |
| Cutting precision | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) |
| Max. Mechanical speed | 4200s/h | 4000s/h | 3600s/h |
| Pressure adjusting range | ±1(mm) | ±1(mm) | ±1(mm) |
| Min. Gripper Margin | Gripper ≥8(mm) | Gripper ≥8(mm) | Gripper ≥10(mm) |
| Total Power | 21kw | 25kw | 25kw |
| Machine dimension(include the work platform,pre-feeder) | 7511×4510×2292(mm) | 7708×4650×2292(mm) | 8600×4820×2330(mm) |
| Machine dimension(exclude the work platform,pre-feeder) | 6511×2450×2292(mm) | 6708×2596×2292(mm) | 7600×2805×2330(mm) |
| Gripper/needle numbers/each | 10 | 11 | 12 |
| Total Weight | ￣18t | ￣21.5t | ￣22t |
| Type | 1300QS | 1480QS | 1650QS |
| Max. Paper size | 1330×980(mm) | 1480×1080(mm) | 1650×1420(mm) |
| Min. Paper size | 550×480(mm) | 550×480(mm) | 650×550(mm) |
| Max. Cutting size | 1300×960(mm) | 1450×1050(mm) | 1620×1190(mm) |
| Max. Cutting pressure | 250×104N | 300×104N | 300×104N |
| Stock range | Corrugated≤7mmCardboard≧250g | Corrugated≤9mmCardboard≧250g | Corrugated≤9mmCardboard≧250g |
| Cutting precision | ±0.5(mm) | ±0.5(mm) | ±0.5(mm) |
| Max. Mechanical speed | 4200s/h | 4000s/h | 3600s/h |
| Pressure adjusting range | ±1(mm) | ±1(mm) | ±1(mm) |
| Min. Gripper Margin | gripper≧8(mm) | gripper≧8(mm) | gripper≧10(mm) |
| Total Power | 21.5kw | 25.5kw | 25.5kw |
| Machine dimension(include the work platform,pre-feeder) | 8613×4510×2292(mm) | 8820×4650×2292(mm) | 9180×4820×2330(mm) |
| Machine dimension(exclude the work platform,pre-feeder) | 7513×2450×2292(mm) | 7820×2596×2292(mm) | 8180×2805×2330(mm) |
| Gripper/needle numbers/each | 10 | 11 | 12 |
| Total Weight | ￣20t | ￣23.5t | ￣24t |
Products Advantages:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory
Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine, automatic flexo printer slotter die cutter stacker machine, high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler machine , paper tube making machine, flexo ink printing wastewater treatment machine and so on.
