high production tissue paper tube making machine - Welldoing trading limited

Short Description:

Product type:  paper core machine ,paper tube making machine

Power: 15 KW

Certification :iso9001

Warranty : 1 Year

Place of Origin :china

Supply Ability: 5 set permonth

Delivery Terms:40-50 days


Product Detail

Product Tags

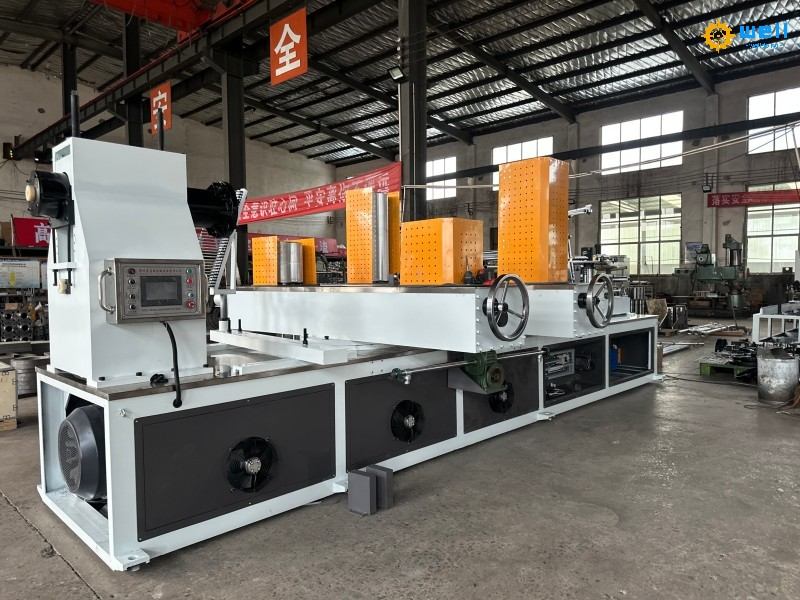

high production tissue paper tube making machine

We are a foreign trade sales manufacturer integrated company, we have specialized in doing paper tube making machine for many years, for example :tissue paper tube making machinepaper core making machine fireworks paper tube making machine , big diameter kraft paper tube machine,toliet tissue spiral paper tube machine and related products of paper tube cutting machine, paper slitter rewinder machine,paper angle board machine, we have a professional technical team, products exported to Southeast Asia and Europe and other countries

www.wd-cartonmachine.commachine-16 machine-14 machine-13

Making paper tube process:

www.wd-cartonmachine.com

Technical parameters:

Model Model 200 Four-Head Tube Machine
Technical parameter Control system
paper layer 3-25layers Frequency converter ENERGY
Inner diameter of tube 30-200(mm) Major Executing Devices (Contactors, etc.) CHINT
Thickness of tube 2-15(mm) Button Siemens
Speed 0-20(m/min) Emergency stop Siemens
Fixed length mode Light Control (Infrared) knob Siemens
Winding head Four nose Signal element (photoelectric switch, etc.) hugong
Cutting type Single knife cutting Pneumatic components SOUPAI/TIANAO
Fixing Method of Core Rolling Die Flange tightening Synchronous control Pneumatic
Gluing way Double sided glue Fixed length mode Proximity switch
control mode Frequency control PLC controller WEIKONG
Input voltage 380V/220V Interface KUNLUN
Number of operators 1-3people Button stop Jiangyin Changjiang Brand
Dimensions (mm) Cylinder Al DEK
Main machine:L*W*H 5200mm*1900mm*2100mm Solenoid valve Al DEK
Coverage: L*W 20000mm*9000mm Configuration device
Hub diameter 294mm Paper holder type Fixed hoisting paper holder
Hub height 360mm/430mm Glue supply Automatic cycle gluing, heated glue tank
Host weight 3050kg Paper tape for lubricating oil Automatic lubrication stainless steel basin
Total weight 4060kg Tension adjust Mechanical adjustment
Drive system Bottom and Top Paper Device Stainless steel bottom paper holder, face paper basin
Main power 15kw shanghaiqiangsu/hengshui yongshun Guide wheel Stainless steel pipe
Main engine speed 1400r/min Host Mesa Stainless steel plate
Max. speed of hub 47r/min Coil mandrel 1
Hub Output Torque 8500N.m Coil belt 2
Reducer Model WPO155 hangzhou xiaoshan/yiding Blanking rack Stainless steel automatic blanking
Drive Chain Type 12A*2 Application tools Neihexagonal 1 set
Hub drive Four wheel drive
Cutter motor 0.4kw OTG from shanghai
Transmission mode chain
Bearing wanxiang

www.wd-cartonmachine.com www.wd-cartonmachine.com certifications3 packing-shipping

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:cartonmachine.tomwang@aliyun.com

Phone/Wechat/Whatsapp:+86 13303078975
