L shaped corner board making machine - Welldoing trading limited

Short Description:

Wide	20-100mm	Thick	2-8mm
Control mode	Frequency control	Coverage:L*W	22m*3m
Total weight	4590kg	Production speed	0-40m/min

Send email to us Download as PDF

Product Detail

Product Tags

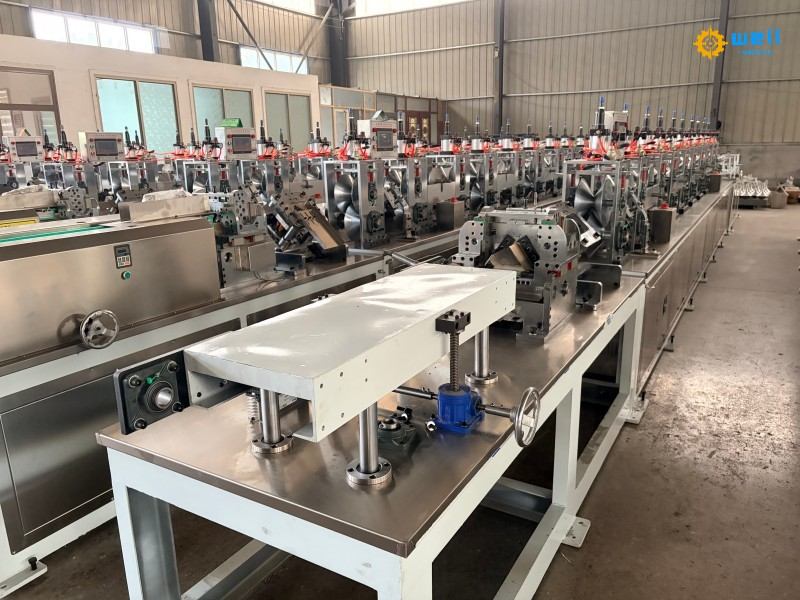

L shaped corner board making machine introduction

1. The paper loading part is a right-angle hanging paper rack. The right-angle paper rack saves space, and the paper is pulled smoothly.

2. Independent glue supply system is pneumatic automatic glue application for diaphragm pump. The speed of glue supply can be controlled by adjusting the air pressure, and the method is simple and easy to operate.

3. The host is an eight-component type, and the pressure wheel depth of each component can be adjusted by manually adjusting the cylinder (the cylinder is adjustable); the pressure can be controlled by the pressure regulating valve according to the thickness of the angle of protection, and the operation modes are all Extremely simple.

4 The plastic tank and the rubberized plate are made of stainless steel, which has corrosion resistance and wear resistance, which greatly enhances the service life of the plastic tank. A separate glue-coated tray for each layer of paper avoids the problem of easy paper breaks. The glue scraper is a stepped glue method, which also plays an important role in solving the paper break problem.

5. The conveying device after the corner protector is convenient for the bundling and transportation of the corner protector.

Our service:

automatic paper corner board making machine warranty for one year (cylinder parts warranty for three months,the belt,mold,the blade is not not warranty)

1. equipment installation and commissioning after free repair period is one year.

2.free of charge to the customer technical guidance and training of equipment operation and maintenance of the knowledge.

3.from the use of nealect,vandalism,natural disasters damaged and in need of replacement parts of artificial,material fee will be charged.

4.in the warranty period is over, bassed on the parties intend to continue the development of cooperation,we provide lifetime repair service,only charge for the spare parts,material cost.
