Lead eder feeder flexo printer die cutter slotter machine - Welldoing trading limited

Short Description:

The leading edge sucks air for paper feeding, the steel pipe surface of the upper paper feeding roller is wrapped with wear-resistant rubber, and the surface of the lower paper feeding roller is wrapped with wear-resistant rubber

Embossing and hard chromium plating, balance correction, more stable paper feeding, high degree and simple operation


Product Detail

Product Tags

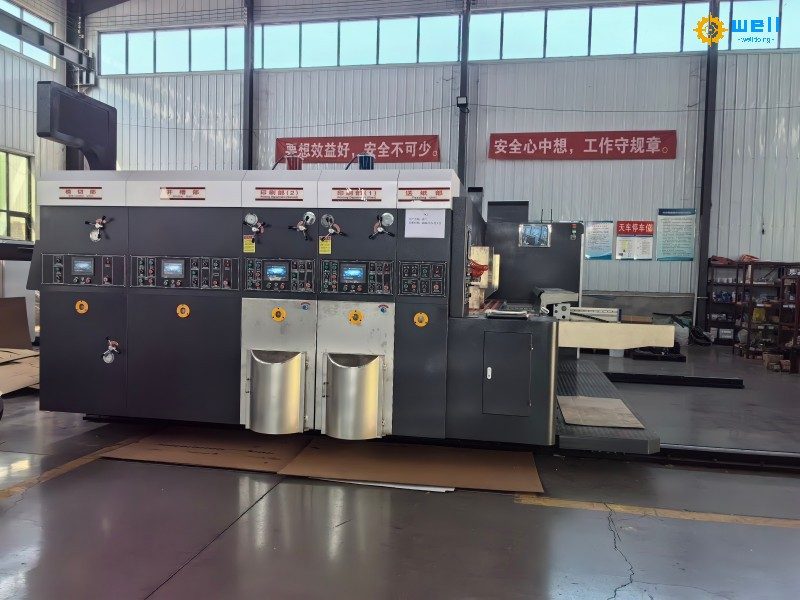

automatic flexo printer die cutter slotter machine

Paper feeding Department:

1. The leading edge sucks air for paper feeding, the steel pipe surface of the upper paper feeding roller is wrapped with wear-resistant rubber, and the surface of the lower paper feeding roller is wrapped with wear-resistant rubber

Embossing and hard chromium plating, balance correction, more stable paper feeding, high degree and simple operation;

2. The 7.5kW high-pressure centrifugal fan can control the wind pressure by frequency conversion according to the warpage degree of paperboard, so as to ensure the high-speed and accurate transmission of warped paperboard and thin paperboard;

3. The position of the left and right side baffles is electrically adjusted by the lead screw, and the rear baffle is electrically adjusted

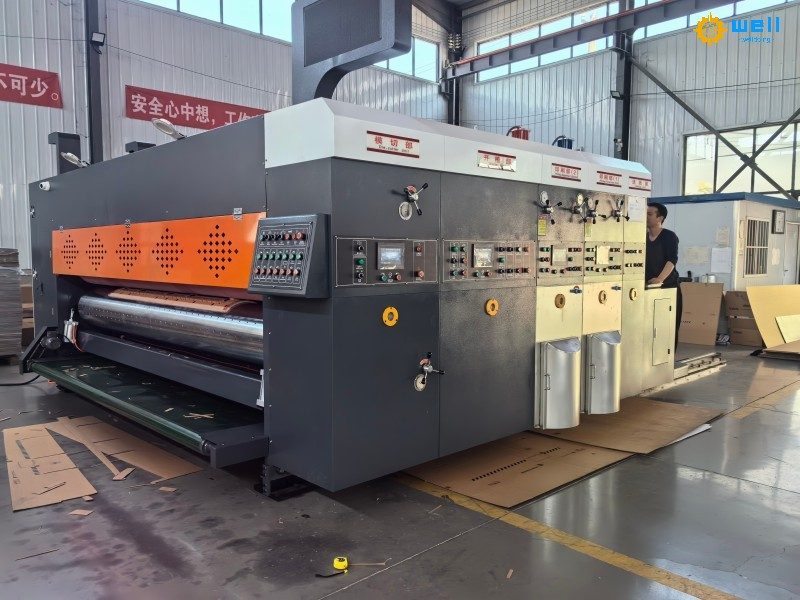

flexo printer slotter die cutting machine

4. The paper feeding device can select the paper feeding device according to the needs. Ensure that large-scale paperboard can also be processed;

5. Install a 7-inch touch screen, which can automatically display the production quantity and production speed, and set the production quantity;

6. The paper feeding part is equipped with dust removal brush and automatic dust collection equipment

7. The slotting part is equipped with interlocking control switch to realize emergency stop, stop feeding or resume paper feeding

machine-16 machine-10



2 color printer die cutter slotter machine clutch:

1. The button switch electrically controls the separation and combination of the machine, and is equipped with an automatic alarm device. The bell will ring continuously during the travel to ensure the operator

2. Pneumatic interlocking device, locking firmly, convenient and accurate

3. Active self-locking function: when the unit is not fully locked, the host cannot be started to ensure the machine and operators; When the main engine works normally, the clutch function of the unit is automatically locked to avoid machine and personnel injury caused by misoperation

Paper feed roller:

1. The upper paper feeding roller adopts rubber roller with elastic buffer and wear-resistant rubber, the surface of the lower roller is embossed and plated with hard chromium, and the dynamic balance correction processing ensures that the paper feeding is stable and accurate

2. Fine adjust the worm gear box clearance according to the paperboard thickness, with locking device, and the adjustment range is 0-12mm

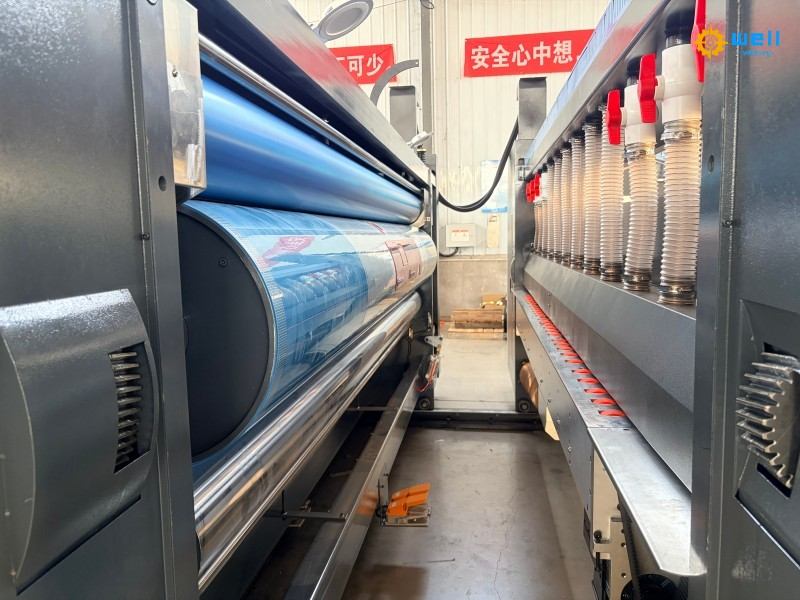

Printing department:

1. Printing roller:

① Steel production, surface grinding, hard chromium plating. Static balance correction, stable operation, suitable for high-speed operation;

② The roll body is engraved with reference lines in the horizontal and circumferential directions to facilitate plate alignment

③ Electric 360 ° positive and negative adjustment printing roller, digital automatic display of adjustment amount

④ The printing roller shaft is manually adjusted to the left and right, and the large movement is 10mm to the left and right, in response to the automatic zeroing command

2. Embossing roller:

① It adopts seamless steel pipe for fine processing, double shaft disc welding for dynamic balance correction, and the operation is stable

② Diameter φ 156mm, surface grinding, hard chromium plating

③ The gear adopts a gapless adjustment mechanism, which will not affect the gear clearance and ensure the transmission accuracy

3. Anilox roller:

① Diameter φ 213mm

② Mesh number of network cable: 250, 250, 280

③ Pneumatic anilox roller automatic lifting device and idling device

4. Rubber roller

① Diameter φ 198mm

② Clutch and automatic idling device to prevent ink from drying up

③ Quick interval fine adjustment self-locking device to ensure uniform inking

④ The inking cot has an independent driving mechanism to ensure the inking quality

Die cutting part:

1. Crimping shaft:

① The shaft diameter is 110mm, the surface is ground, plated and hard branded, and the movement is stable.

② Make balance correction and run smoothly.

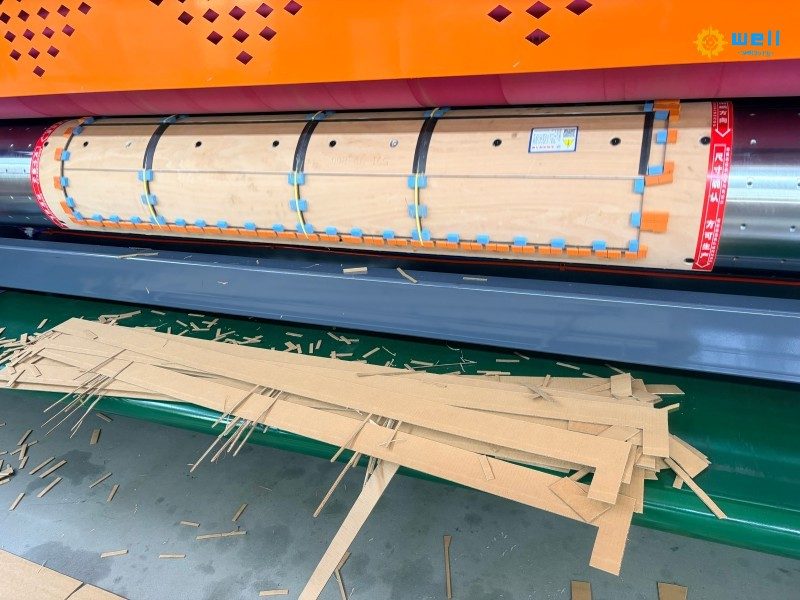

2. Die cutting roller:

① Axial automatic cyclic translation;

② The soft cutting roller adopts Taiwan Super resistant and superior rubber sleeve;

③ Die cutting shaft adjustment gauze shaft adjustment makes the machine run more easily

④ It has the function of linear speed tracking and compensation behind the upper and lower die rollers;

⑤ The lower roller is equipped with a version free slotting device, which does not use a template when making a regular box, so as to reduce the use cost

⑥ Imported Youli rubber pad is adopted, and the bottom shaft can be raised and lowered pneumatically, so that it can be adjusted during idling and phase adjustment

Not easy to damage the rubber pad;

⑦ In the work, the bottom shaft adopts left and right automatic displacement, and the die-cutting is placed automatically, so that the notch knife mark is heavy

The service life of Youli rubber pad is greatly improved;

8. The lower knife adopts imported Youli knife, which is very convenient to install. It has the function of carton handle hole:

The whole machine comes with a set of long knives and a set of short knives as a gift: die cutting 4 knives are linked and adjusted manually and synchronously.

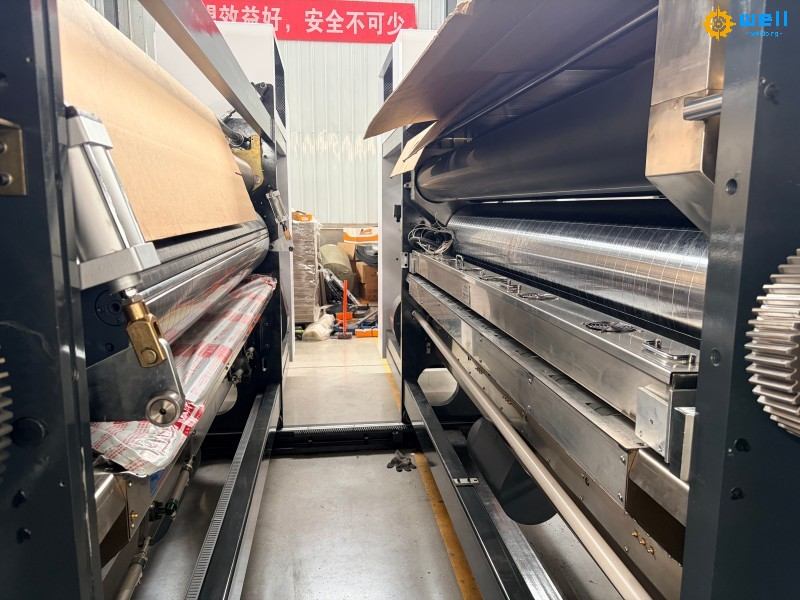

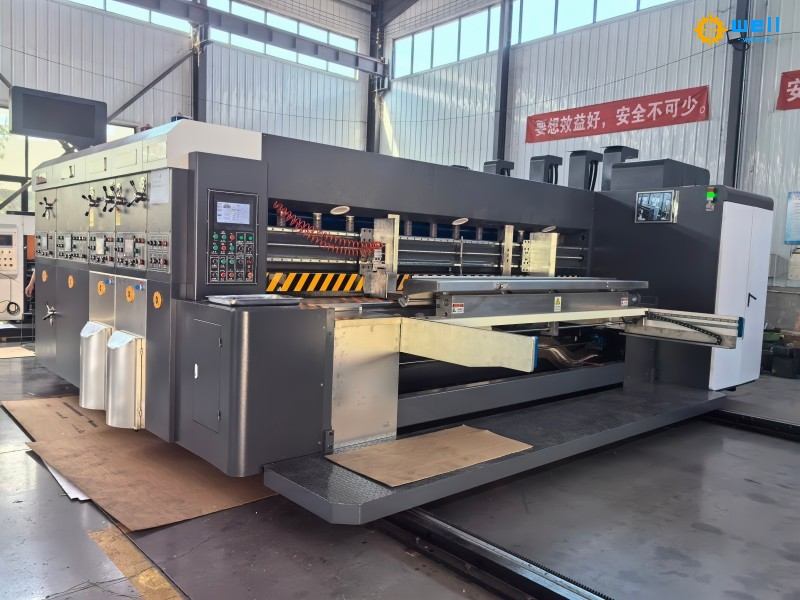

auto-flexo-printer-die-cutter-machine

Rack part:

1. The wall panel adopts 50mm thick solid to make the machine run smoothly.

2. The pull bar adopts national standard 160 I-shaped channel steel. Make the machine run smoothly.

3. The ground rail adopts cast iron to make the walking more stable.

Traveling part:

1. The traveling wheel adopts 6206 double bearings, which can withstand greater pressure.

2. The walking shaft adopts 35 diameter cold drawn steel to make the machine more stable when walking.

3. If the machine is locked, the electrical parts can control the traveling motor, and the motor cannot be started, so as not to damage the motor.

machine-5

Locking part of the flexo printing slotting die cutting machine :

1. The locking part adopts CF18 bearing to make the locking wear free.

2. It is equipped with shaft locking part, which can automatically control the shaft locking without single control and improve the rate.

Transmission part:

1. All transmission shafts adopt gear transmission to improve the rigidity of the machine.

2. The gear material is processed by heat treatment of steel parts to make the machine more wear-resistant.

3. The gear adopts helical teeth with 9 degrees. The gear is 50mm thick and finely ground

4. All transmission shafts and gears are connected with keyless connecting rings to make the shaft and gear have zero clearance, keep the shaft and gear the same and improve the printing accuracy.

5. Cf12 bearing cross frame is adopted for eccentric shaft transmission to make the machine zero wear.

6. The forward paper lower shaft is 156mm in diameter. Make the cardboard difficult to slip.

7. The lower paper delivery shaft adopts a diameter of 156mm to reduce the number of machine revolutions and ensure the printing effect.

8. The bottom shaft bearing adopts 6210 bearing and the intermediate wheel bearing adopts 6206 bearing, so that the machine can bear greater load.

9. All transmission shafts shall be made of seamless steel pipes, and the shaft head shall be welded with double discs and dynamically balanced

10. The gear is 1:1 to reduce the wear of the gear.

11. The leading edge paper feeding part adopts rubber shaft paper feeding to make the machine paper feeding more convenient.

Adjustment part:

1. All adjusting rods are connected with the right eccentric of the straight optical axis with a diameter of 30 to make the eccentric adjustment more synchronous.

2. All eccentric adjustment adopts double turbine adjustment to make the machine adjustment more and faster.

3. The rubber shaft adjusting gear is connected with the adjusting rod with a keyless connecting ring to make the rod and gear have zero clearance,

And can quickly adjust the balance of the eccentric shaft.

Customer owned part:

1. The power supply and wire are connected to the operation cabinet and line pipeline.

2. Water source, water supply pipeline, water bucket.

3. Machine oil, lubricating oil and grease for equipment

4. Catering and accommodation for installation and commissioning personnel. And provide installation workers to cooperate with the installation.

5. Common tools and accessories for commissioning equipment.

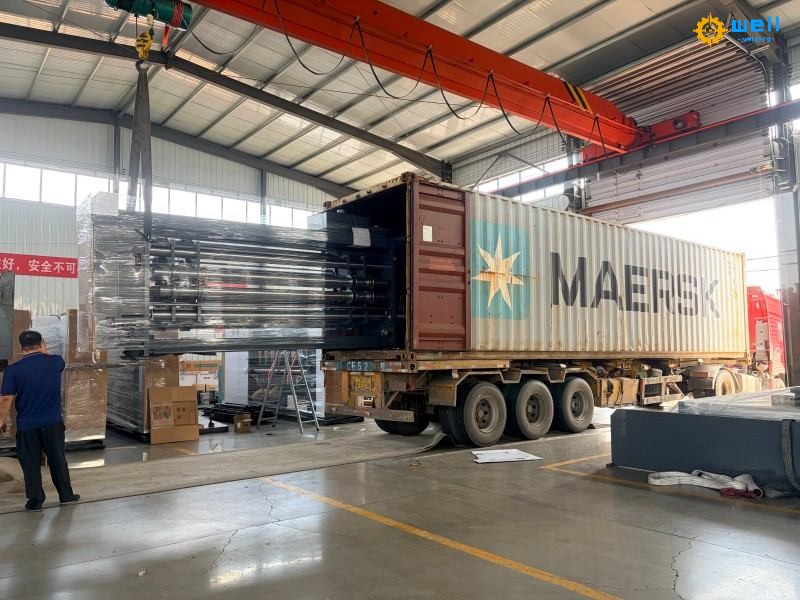

customers packing-shipping

★ introduction to stacking section:

1. The paper receiving arm can be operated electrically or automatically.

2. Adjust the tightness of the paper receiving arm belt independently.

3. The paper receiving platform is driven by the lifting chain.

4. The paper receiving platform automatically adjusts the tilt height with the stacking height of paperboard, and the lifting motor is equipped with electric brake

Function, the platform can maintain a fixed position.

5. The air pressure of the paper receiving support plate acts. When the paperboard is stacked to a predetermined height, the paper receiving support plate is automatically supported

Out, hold the cardboard.

6. The stacking height is 1.8m.

7. The waste cleaning department can electrically control its working state and transport paper when the waste cleaning department is not working
