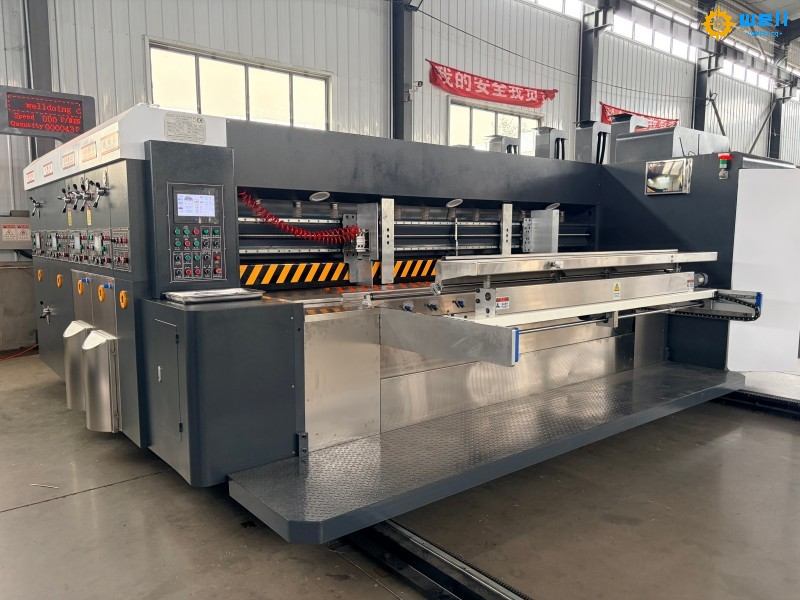

corrugated carton flexo printing slotting machine

◆ the whole machine is fast order changing and easy to operate.

◆ adopt imported PLC and touch screen multi-function control. Common orders can be stored to speed up the order replacement operation.

◆ all roller shafts are chrome plated,

◆ the transmission adopts alloy steel precision grinding gear and spray circulating lubrication system.

◆ key free continuous ring is applied to reduce center wear, virtual position amplification and small printing error.

◆ it adopts plate hanging structure, which can automatically reset and change orders quickly.

◆ each flexo printing die cutting slotting machine is equipped with emergency stop switch, protection and safe operation.

◆ the clearance adjustment adopts self-locking adjustment device, which is easy to operate.

◆ electrical components, main closing bearing and pneumatic control.

Paper feeding Department of the high speed ink printing machine

◆ the leading edge paper feeding system and frequency conversion adjust the air volume to ensure stable paper feeding.

◆ double row paper feeding roller mode, front paper feeding upper roller quick change mechanism, wrapped with wear-resistant rubber, and equipped with spring adjustment function, which can prevent cardboard deformation and ensure paper feeding.

◆ dust removal brush and dust suction device to remove paper scraps on the surface of paperboard.

◆ the touch screen displays the production speed and quantity.

◆ the paper feeding gap is adjusted manually.

Printing Department

◆ the printing roller and embossing roller are ground and plated with hard chromium. Dynamic and static balance correction, stable operation.

◆ plate hanging mechanism is adopted, which is convenient and fast to install.

◆ loading and unloading printing plate is equipped with foot switch or operation surface to control forward and reverse rotation, which is fast and convenient.

◆ the automatic lifting anilox roller is equipped with the paper feeding system. During paper feeding, the anilox roller automatically drops and contacts the printing plate. When paper feeding is stopped, the anilox roller automatically rises and separates from the printing plate.

◆ the phase adopts electromagnetic brake fixing device, which can be quickly reset dynamically and statically.

◆ the printing phase adopts PLC touch screen control and electric digital 360 degree adjustment.

◆ paper guide wheel fast traverse structure, gap self-locking adjustment device

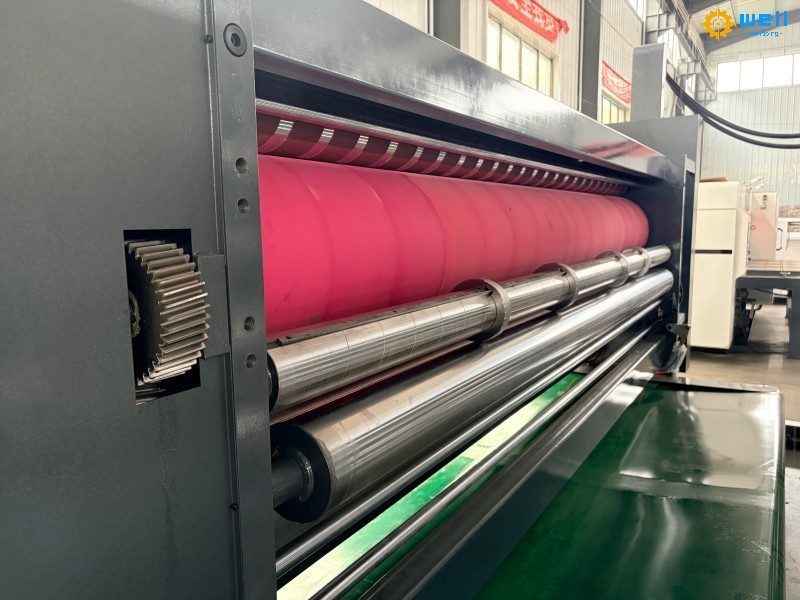

Die cutting part

◆ rubber pad roller and die-cutting roller are made of steel and plated with hard chromium after surface grinding. Dynamic and static balance correction, stable operation.

◆ under the condition of no die cutting, the template roller and Youli rubber roller are automatically separated through the cylinder eccentric device, which can reduce the no-load load load of the machine and prolong the service life of Youli rubber and knife die.

◆ cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller drops during paper feeding) when the paper feeding stops, the rubber pad roller then rises, and each paperboard is die cut correctly.

◆ the mechanical transmission excellent force rubber roller moves laterally by 40mm to the left and right, and is equipped with radial differential device, which can make the rubber pad wear evenly distributed and improve the service life of the rubber pad.

◆ die cutting phase adopts PLC, touch screen and electric digital 360 degree adjustment.

◆ the machine is equipped with a superior glue correction device, which can be used after repeatedly correcting the rubber pad.

◆ template free slotting die-cutting tool holder. When slotting ordinary cartons, it does not need to be a template, which saves cost and improves efficiency. (optional)
