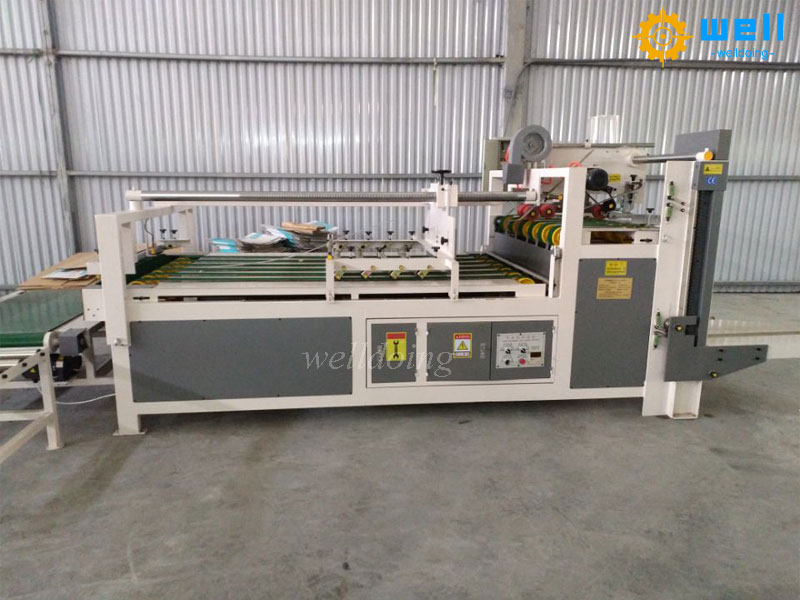

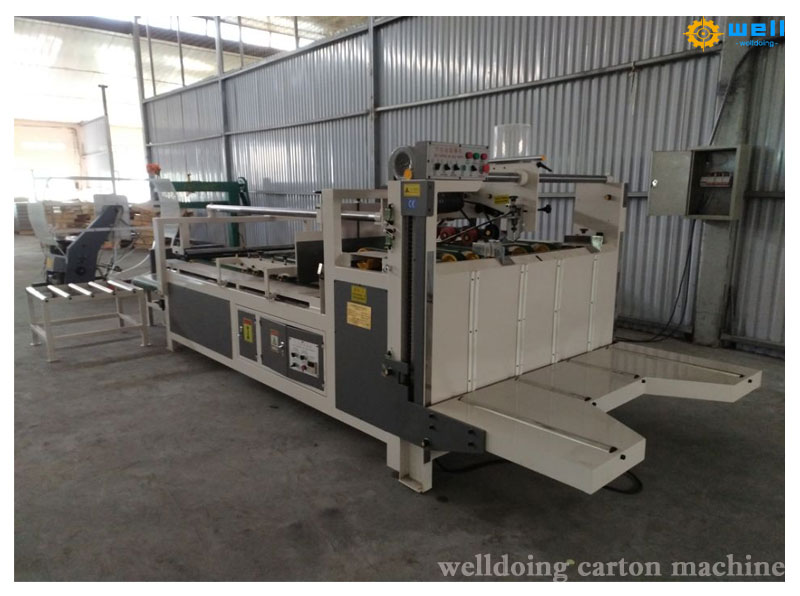

The semi automatic folding gluing machine is a post forming process equipment for cardboard boxes, which can bond the edges of three-layer and five layer corrugated cardboard boxes without the need for iron nails. It has low cost and is suitable for bonding various types of cardboard boxes. Suitable for bonding continuous cardboard boxes, with automatic counting at the back and the ability to output 10 cardboard sheets laterally for easy bundling. Two people operate to reduce salary. The middle section correction function of the box gluing machine ensures that there will be no scissor mouth phenomenon in the cardboard box.

The semi-automatic carton box folder gluer equipment is widely used, mainly for functions such as folding, gluing, shaping, conveying, pressurization, counting, and drying of cardboard boxes. The entire machine consists of a feeding section, gluing section, shaping section, conveying pressurization section, and receiving counting section.

The operating procedure is for workers to manually fold the processed whole piece of cardboard and send it to the semi automatic folding gluing machine . The gluing department automatically applies glue to the bonding area of the cardboard, and then sends it to the shaping department through rollers to shape one by one until a certain quantity is reached. After that, it is automatically transmitted for pressure, blow drying, and finally completed.

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:cartonmachine.tomwang@aliyun.com

Phone/Wechat/Whatsapp:+86 13303078975
