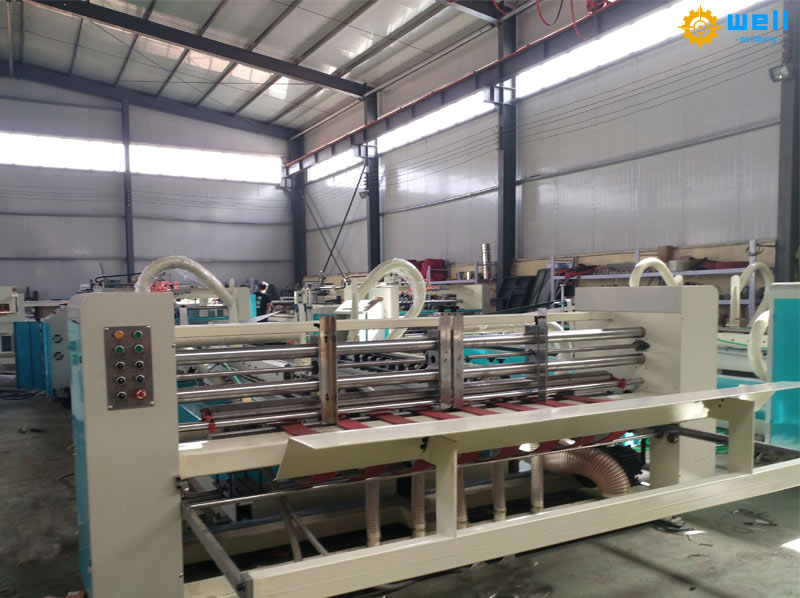

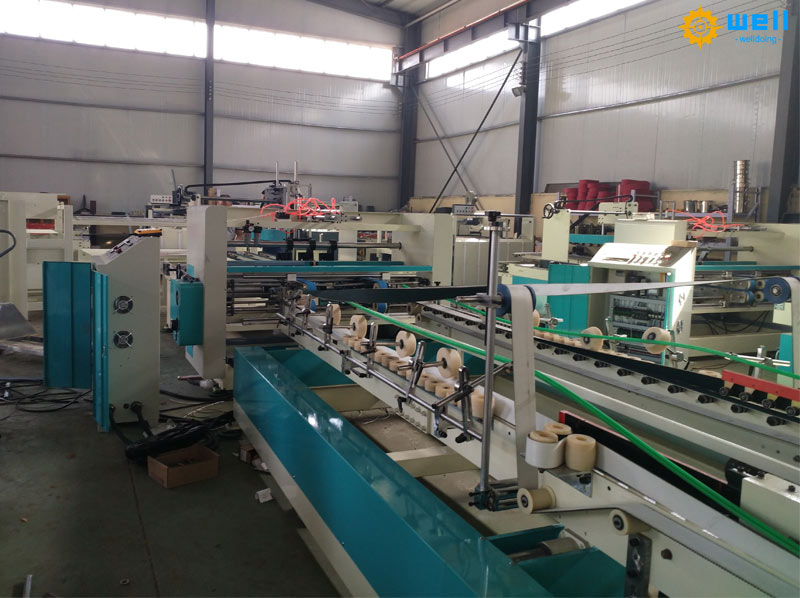

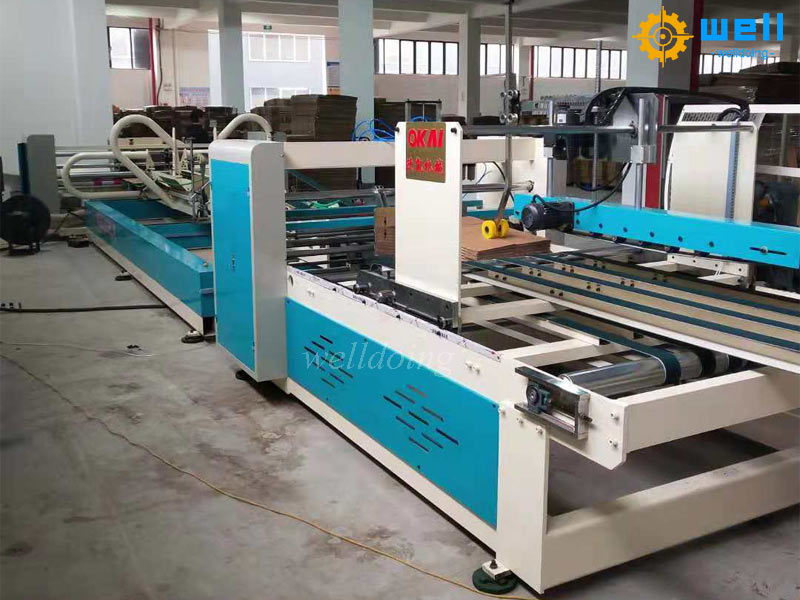

The automatic box folder gluer machine , also known as the box gluing machine, is the final process equipment for cardboard production. It is mainly used for bonding single corrugated cardboard to meet the requirements of multiple varieties, small and medium-sized batch production, and to meet the packaging needs of export products such as food and cotton textiles. It is currently an ideal cardboard equipment. It has the advantages of high efficiency, easy operation, good performance, and reliable operation, and is an essential equipment in the packaging cardboard box industry.

Working principle of carton box folding gluing equipment :

The main component of the machine is the paste box host, which is driven by an electric motor and a reducer through sprockets and chains to rotate the three driven rubber rollers. Complete the conveying action when pasting the box. The sprocket at the other end of the rubber roller is connected to the eccentric shaft sprocket by a chain. The rubber roller rotates to drive the eccentric shaft, and the push cardboard connected to the eccentric shaft moves back and forth to complete the required action for pushing the cardboard box. The pressure wheel on the pressure wheel shaft plays a bonding role when passing through, and the height is adjusted by the handwheel.

The rotation of the adhesive roller in the adhesive box head is slowed down by an electric motor and driven by a chain wheel, causing the adhesive roller to rotate to achieve the action of pasting the box. The adhesive head in the adhesive box head must be removed and cleaned after work, so that the adhesive roller of the Corrugated folding gluing machine is not affected by the drying of the adhesive and can rotate flexibly when working.

When sticking cardboard boxes of different sizes, the distance between the positioning brackets can be adjusted to complete the guiding action required for the size of the cardboard boxes.
