Short Description:

Our company with high standards of quality requirements, with product specialization, advanced automation, enterprise scale become the benchmark of nail box machine industry, products ,such as semi automatic stitching machine, semi automatic carton corrugated stitching machine and semi automatic corrugated box stitcher machine, sold all over the country in domestic and foreign markets.


Product Detail

Product Tags

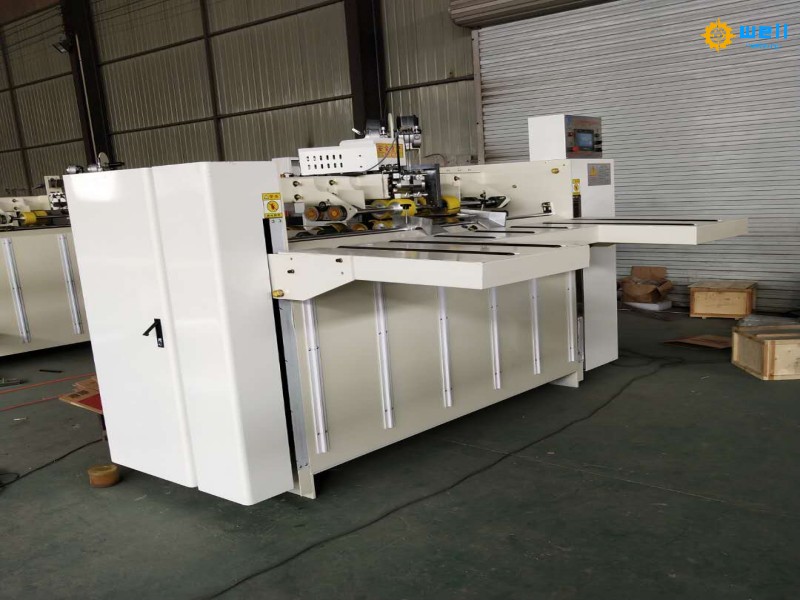

semi automatic corrugated box stitching machine

♦ Mitsubishi dual servo drive, precision, mechanical transmission part reduction. can effectively reduce the mechanical failure rate.

♦ weilun touch screen operation, parameters (nail distance, nail number, nail type, backboard) easy to change.

♦ the whole control system adopts Japanese omron PLC control system

♦ rear electric baffle, driven by stepping motor, accurate size, more convenient and fast size conversion.

♦ the full contactor in the control box adopts the brand of Siemens.

♦ relays are all made by schneider.

semi-automatic-stitching-machine-4

♦ photoelectric and proximity switches adopt Japanese omron brand.

♦ bottom die, the blade is made of Japanese tungsten steel (wear-resisting).

♦ the whole set of nail head are all made of special steel, computer gong precision processing.

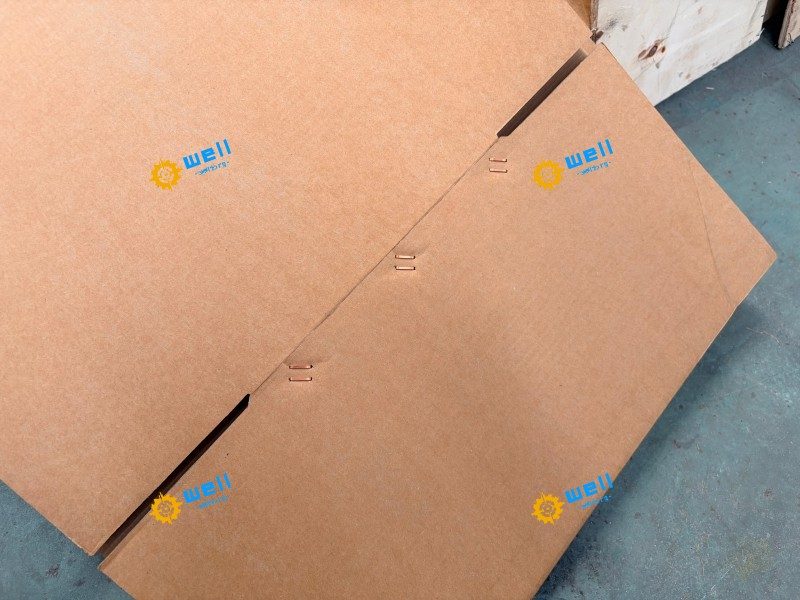

♦ single stitching/, double stitching//, reinforcing stitching(// // // /double stitching at both ends and single stitching at the middle part)can be finished in one time, which can meet different requirements of different customers.

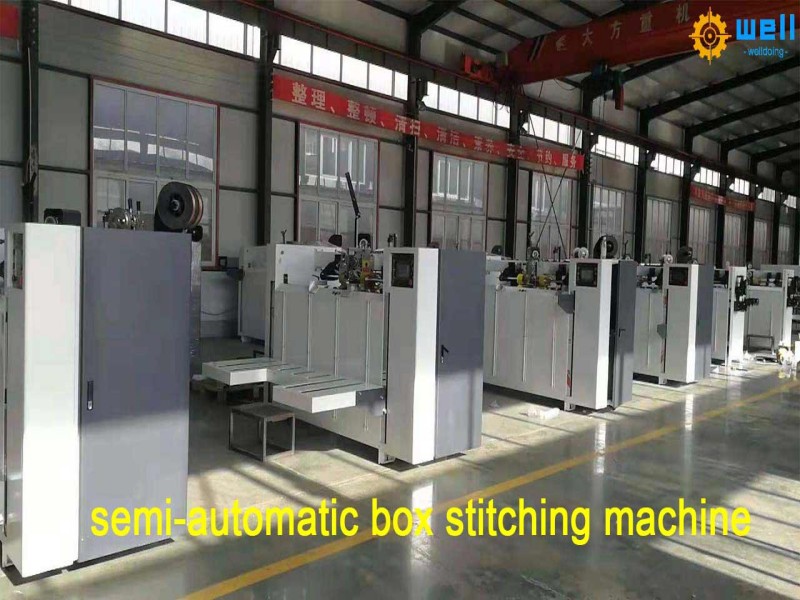

♦ semi automatic box stitching machine only takes one minute to change the carton size and adjust the carton stitching distance, which greatly saves time and is convenient to operate.

semi-automatic-stitching-machine-1

♦ the front feeding part is automatically counted, and the feeding table is equipped with photoelectric induction device, which automatically rises when feeding.

♦ the back section is equipped with automatic counting function, and the finished pieces can be stacked and sent to the end of the transmission machine according to the set quantity(2-99), which is convenient for packing and binding

♦ electric adjustment of the clearance of the paper press rubber wheel.

♦ machine order type adjustment, can store 100 orders.

♦ protection function of isolating transformer for the whole machine;

♦ automatic wire feeding svstem, 20KG flat wire, save time.

♦ front and rear two-way baffle configuration,can order lideless carton and small cardboard box. color box.

Model

BDJ-2000B

Bdj-2500b

MAX (A+B) *2(mm)

3740 (1100+770)

4740

MIN (A+B) *2(mm)

700

560

MAX (C+D+C) (mm)

2500

2500

MIN (C+D+C) (mm)

400

450

MIN rock cover C (mm)

20

75

MAX rock cover C (mm)

310  500 (optional)

500

MAX width B (mm)

770

920

MIN width B (mm)

150

150

MAX length A (mm)

1100

1450

MIN length A (mm)

200

200

MAX height D (mm)

2000

2000

MIN height D (mm)

150

150

MAX width of the tongue E  (mm)

40

40

MAX height of feeder (mm)

900

900

Overall dimensions (mm)

2850*1700*1800

3300*1700*1800

Weight (T)

2

2.3

Speed (Nail / min)

600

600

Number of Stitching

2-99

2-99

carton-floder-gluer-stitching-machine

HTB1eYniXyLrK1Rjy1zdq6ynnpXam

HTB1eWd0aELrK1Rjy1zbq6AenFXaS

customers



Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.



FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
