semi automatic flat bed die cutting machine - Welldoing trading limited

Short Description:

1. PLC control, safer and more reliable.

2. equipped with various safety protection devices.

3. Imported parts, more accurate control.

4. Bearings and electrical parts with reliable positioning and accurate control.


Product Detail

Product Tags

Specification Summary:

semi automatic flat bed die cutting machine is one of the best-selling products of our company. It can process ≥ 250 cardboard and corrugated cardboard ≤ 9mm. It is suitable for die-cutting indentation of cartons and cartons, especially for die-cutting of curved cardboard.

machine-4 machine-5

semi automatic die cutting with stripping machine

Die-cutting Section:

Imported parts, more accurate control. Bearings and electrical parts are international famous brands with reliable positioning and accurate control. Die cutting has a high degree of standardization and generalization, so as to meet the needs of cost reduction and mass production.

Electrical Section:

PLC control, safer and more reliable. The electric control system is controlled by PLC and equipped with various safety protection devices. In case of failure, it will give an audible and visual alarm and stop automatically to truly ensure the safety of man-machine.

semi automatic die cutting creasing machine

Type 1300 1480 1650 1880
Max. Paper size 1330×980(mm) 1480×1080(mm) 1650×1210(mm) 1880×1420(mm)
Min. Paper size 550×480(mm) 550×480(mm) 650×550(mm) 650×550(mm)
Max. Cutting size 1300×960(mm) 1450×1050(mm) 1620×1190(mm) 1850×1400(mm)
Max. Cutting pressure 250×104N 300×104N 300×104N 300×104N
Stock range Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g Corrugated≤9mmCardboard≥250g
Cutting precision ±0.5(mm) ±0.5(mm) ±0.5(mm) ±0.5(mm)
Max. Mechanical speed 4200s/h 4200s/h 3600s/h 3000s/h
Pressure adjusting range ±1(mm) ±1(mm) ±1(mm) ±1(mm)
Min. Gripper Margin Gripper ≥8(mm) Gripper ≥8(mm) Gripper ≥10(mm) Gripper ≥10(mm)
Total Power 16.5kw 20.5kw 20.5kw 24.6kw
Machine dimension(include the work platform,Pre-feeder) 6250×4510×2292(mm) 6470×4650×2292(mm) 6770×4820×2330(mm) 7240×5637×2600(mm)
Machine dimension(exclude the work platform,Pre-feeder) 4325×2450×2292(mm) 4526×2596×2292(mm) 4778×2805×2330(mm) 5300×3035×2600(mm)
Gripper/needle numbers/each 10 11 12 14
Total Weight  ̄15.5t  ̄17.5t  ̄21.5t  ̄27t

Products Advantages:

1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory

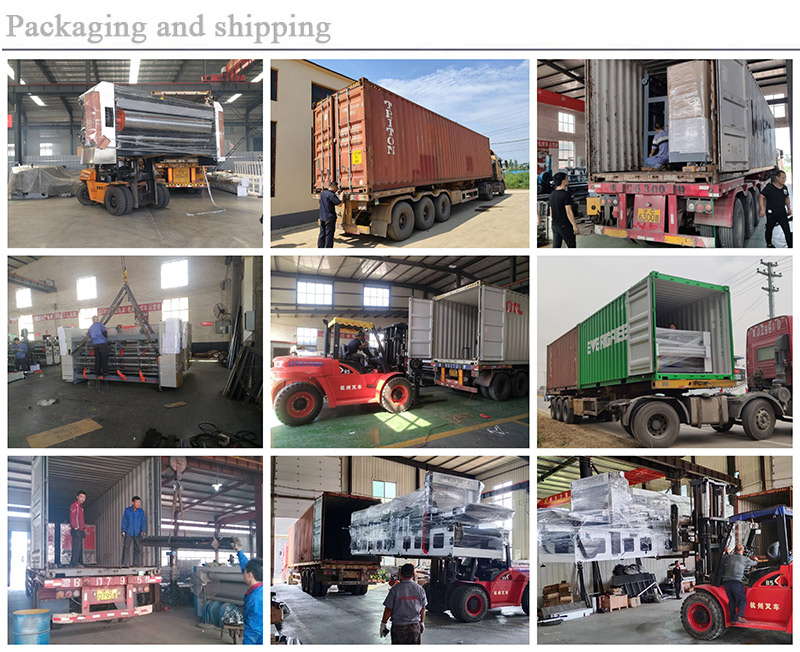

Due to the large size and weight of the equipment, we generally ship by sea. Each machine will be fixed in the container. Also we can wrap it according to customer’s requirements.

WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo printer slotter die cutter stacker machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,automatic partition assembler machine ,paper tube making machineflexo ink printing wastewater treatment machineEPE foam pipe making machine and so on.
